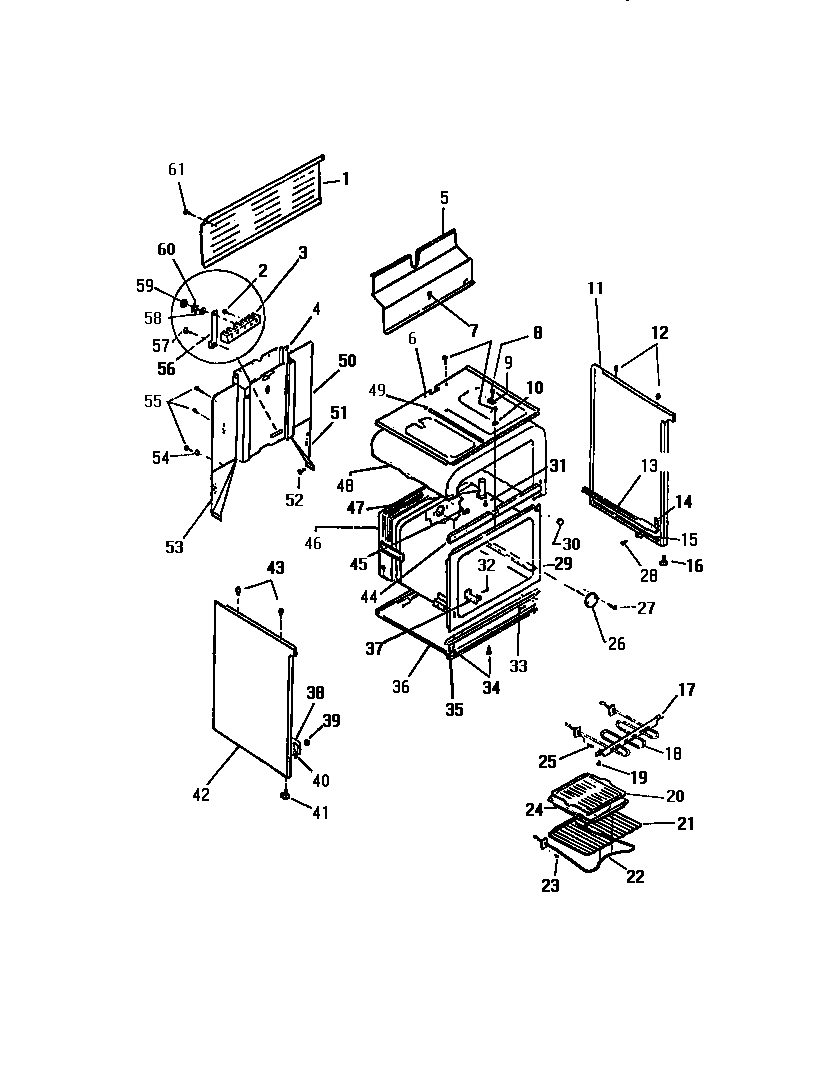

KF300GDH2 05 – BODY, SIDE PANELS

Products

Position	Product
1	COVER-WIRE
3	TERMINAL BLOCK
4	COVER, WIRE
5	WCI K5029503
6	WCI K5025802
8	WCI K1164550
9	RETAINER
10	WASHER, PADDED
11	WCI K5024609
13	RAIL, DWR., RH
17	HANGER
18	5303051516 Frigidaire Broil Element
20	WCI K1317972
21	RACK (2)
22	5303051519 Frigidaire Oven 2600W Bake Element
24	WCI K1317973
26	WCI K1325524
28	SCREW
29	WCI K1325537
30	PLUG-BUTTON 3/4``
31	SCREW
32	08002868 Frigidaire 0 Screw Assembly
33	SCREW
35	CHANNEL, OV. SUPT.
36	PANEL, BTM
37	BRACKET THERM. BULB
38	RAIL, DWR, LH
39	GUIDE
40	SPACER, RAIL
41	LEG
42	PANEL-END RH-WHEAT
43	BUMPER
44	WCI K1325472
46	INSULATION, BACK
47	VENT TUBE
48	INSULATION, WRAP
49	ROD
50	BACK
51	GUSSET, RH
53	GUSSET REAR, LH
54	WCI Q410505
56	STRAP-GROUND
58	WASHER (6)
59	WCI Q401002
60	WCI Q500411
