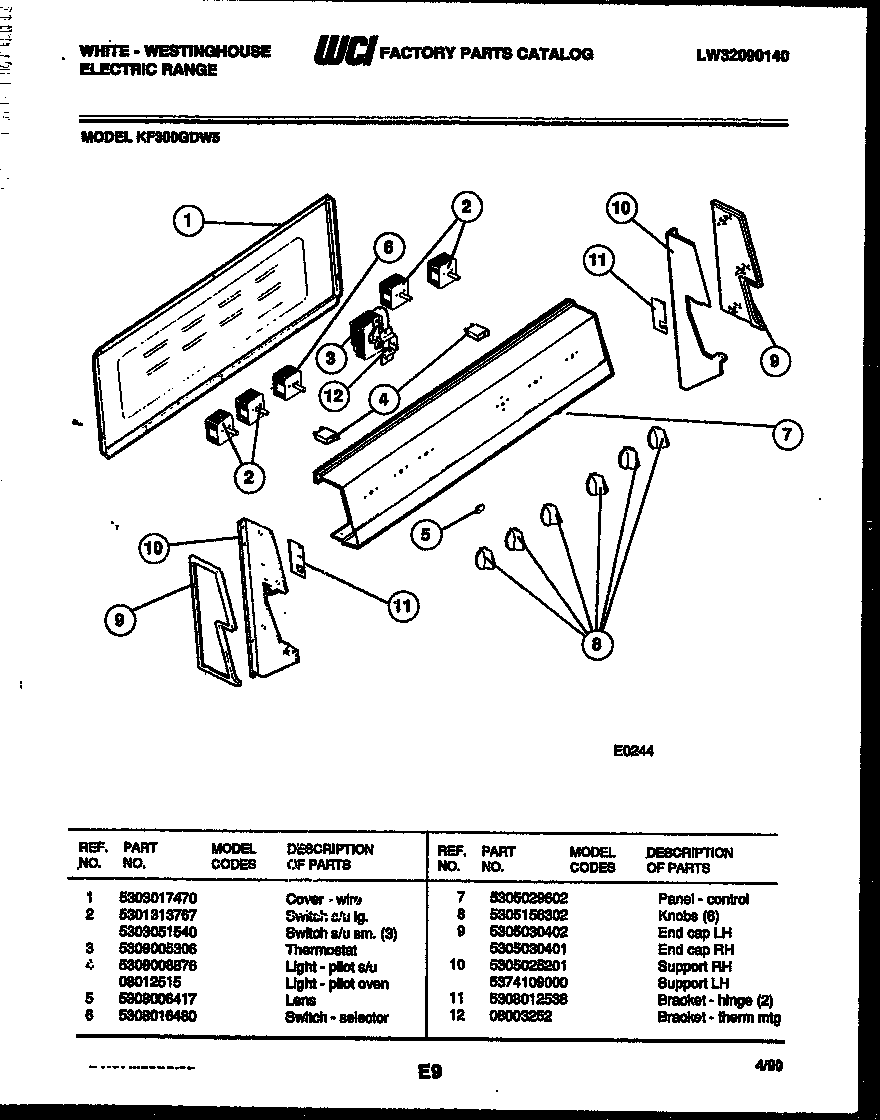

KF300GDH5 02 – CONTROL PANEL

Products

Position	Product
1	COVER, WIRE.
2	5303935086 Frigidaire Oven Top Burner Switch Kit
3	THERMOSTAT
4	INDICATOR LIGHT, OVEN
4A	IND LITE OVEN
5	LENS (2)
6	SWITCH-SELECTOR
7	WCI 5305029602
8	KNOBS (6)
9A	WCI 5305030401
9	WCI 5305030402
10A	SUPPORT LH
10	SUPPORT RH
11	BRACKET, HINGE (2)
12	WCI 08003252
