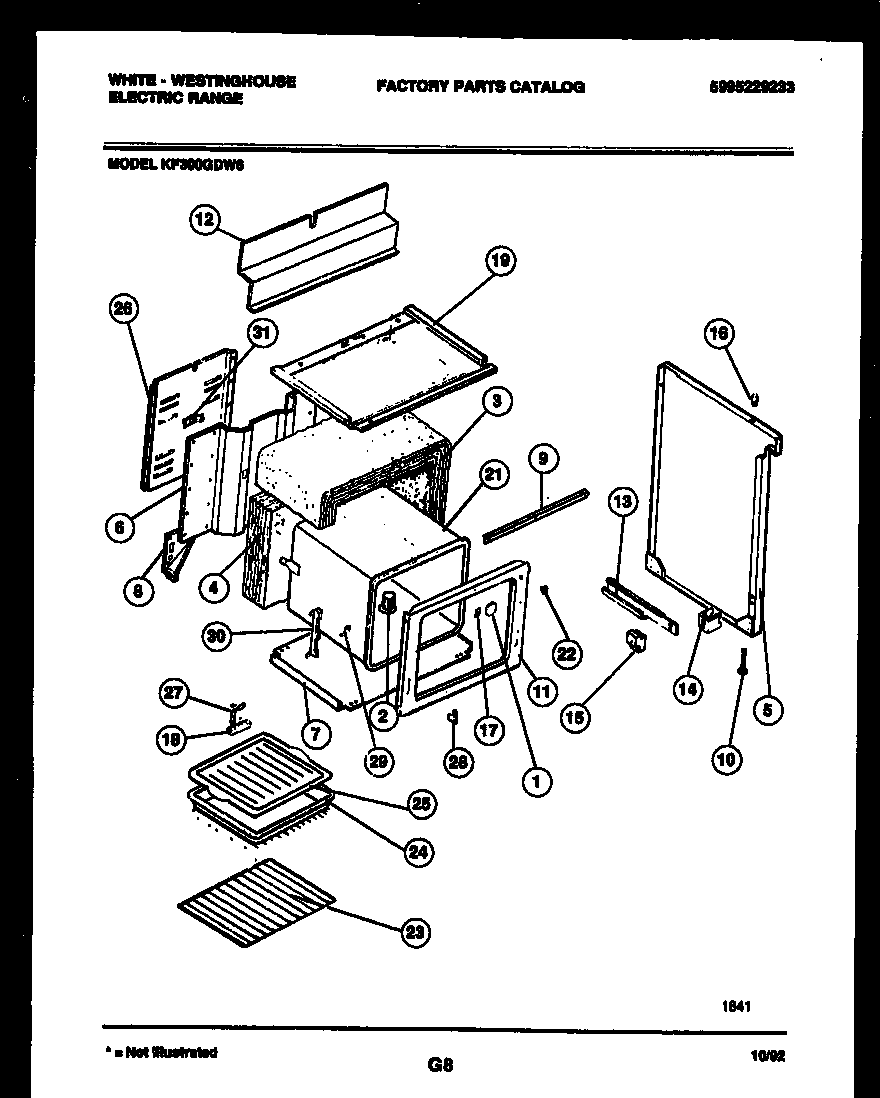

KF300GDH6 06 – BODY PARTS

Products

Position	Product
*70177	WIRING DIAGRAM (NOT FOR PURCHASE)
*70177	ANTI-TIP KIT, (NON-ILLUSTRATED)
1	WCI 3017576
2	WCI 08012541
3	INSULATION – OVEN WRAP
4	WCI 5303274967
5A	PANEL-SIDE LH WHEAT
5	PANEL-SIDE RH WHEAT
6	PANEL-BACK
7	WCI 3206275
8	WCI 3017481
8A	WCI 3017482
9	WCI 5303207391
10	SCREW-LEVELING (4)
11	FRONT – OVEN
12	WCI 3206095
13A	RAIL, DRAWER LH
13	WCI 5308015746
14	SPACER, DRAWER RAIL (2)
15	GUIDE-DRAWER FRNT (2)
16	BUMPER, COOKTOP (4)
17	WCI 3202082
18	5304409888 Frigidaire Oven Terminal Block with Hardware
19	PANEL – SUBTOP
21	OVEN LINER
22	BUTTON-PLUG
23	316067902 Frigidaire Oven Rack
24	WCI 5303292688
25	WCI 3205234
26	WIRE, COVER
27	PLATE=GROUND STRAP
28	WCI 3019063
29	WCI 3201632
30	WCI 3201631
30A	5303284616 Frigidaire Range Bulb Clip Thermostat
31	WCI 3016281
