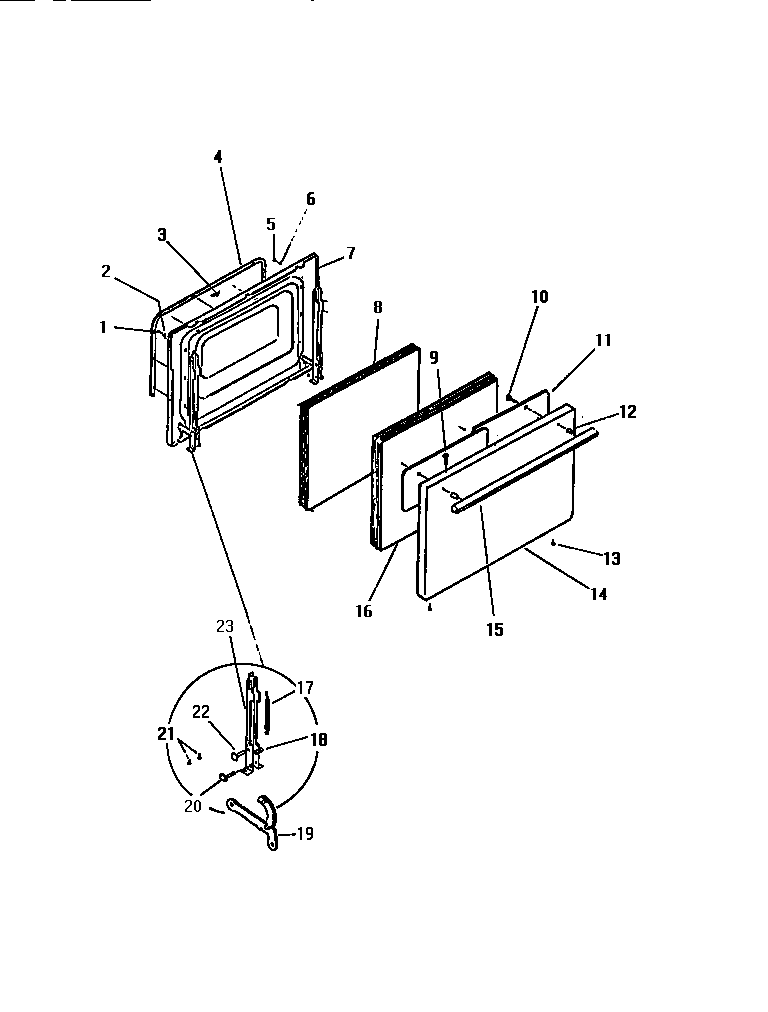

| 3 | WCI K1309666 |
| 4 | GASKET (WITH CLIPS) |
| 6 | WASHER, PADDED |
| 7 | WCI K1317740 |
| 8 | WCI K1312279 |
| 10 | WCI K5104201 |
| 11 | WCI K5109202 |
| 12 | SPACER (2) |
| 14 | WCI K1317932 |
| 15 | HANDLE - DRAWER (CHROME) |
| 16 | INSULATION |
| 17 | SPRING |
| 18 | ROLLER PACKAGE-OVEN DOOR (2) |
| 19 | ARM ASSY. |
| 20 | AXLE |
| 21 | WCI K1164550 |
| 22 | RIVET |
| 23 | CHANNEL ASSY (COMPLETE W/ROLLER & STUD) |
