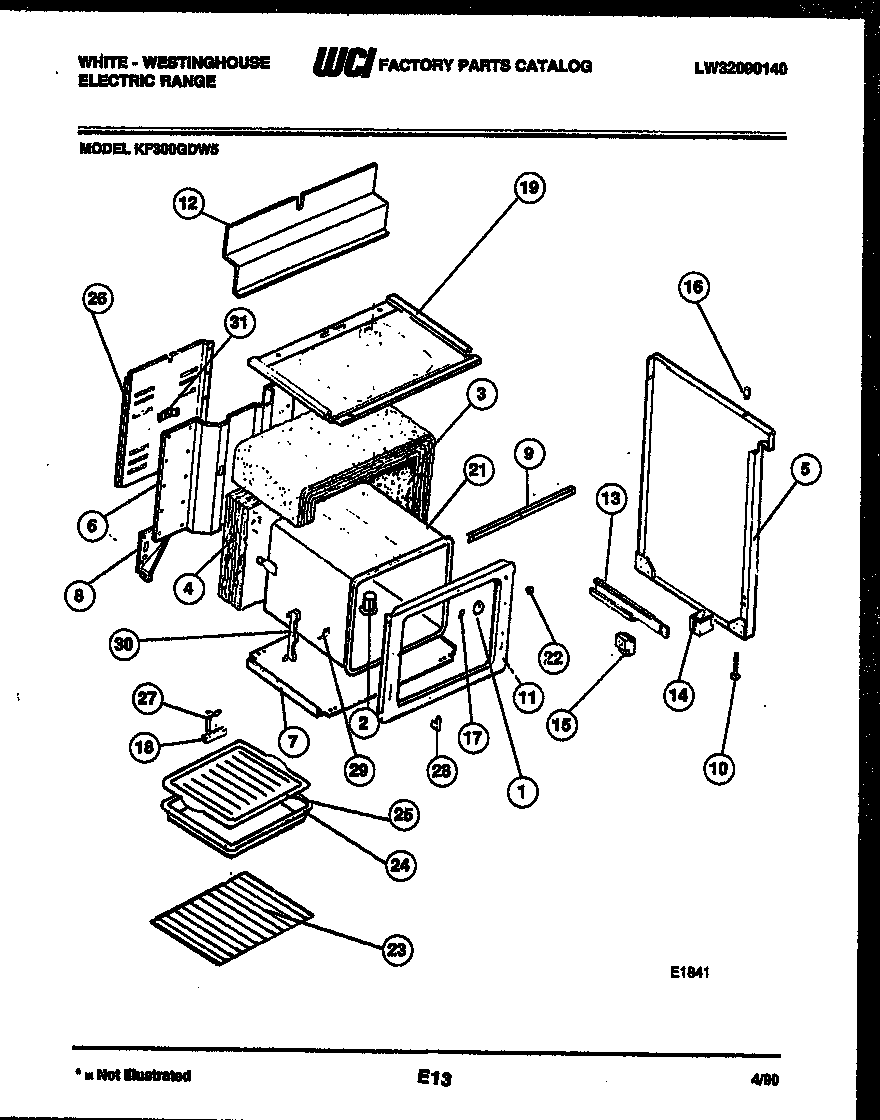

KF300GDW5 06 – BODY PARTS

Products

Position	Product
*29490	ANTI-TIP KIT, (NON-ILLUSTRATED)
1	WCI 3017576
2	WCI 08012541
3	INSULATION – OVEN WRAP
4	WCI 5303051560
5A	SIDE PANEL, LH WHITE
5	SIDE PANEL, RH WHITE
6	PANEL-BACK
7	WCI 3206275
8A	WCI 3017482
8	WCI 3017481
9	WCI 5303207391
10	LEG, LEVELLER (4)
11	WCI 5303207446
12	WCI 3206095
13	WCI 5308015746
13A	RAIL, DRAWER LH
14	SPACER, DRAWER RAIL (2)
15	GUIDE-DRAWER FRNT (2)
16	BUMPER, COOKTOP (4)
17	WCI 3202082
18	5304409888 Frigidaire Oven Terminal Block with Hardware
19	WCI 08012542
21	BODY-OVEN
22	BUTTON-PLUG
23	316067902 Frigidaire Oven Rack
24	WCI 3205232
25	WCI 3205234
26	WIRE, COVER
27	STRAP-GROUND
28	WCI 3019063
29	WCI 3201632
30A	WCI 5300009126
30	WCI 3201631
31	WCI 3016281
