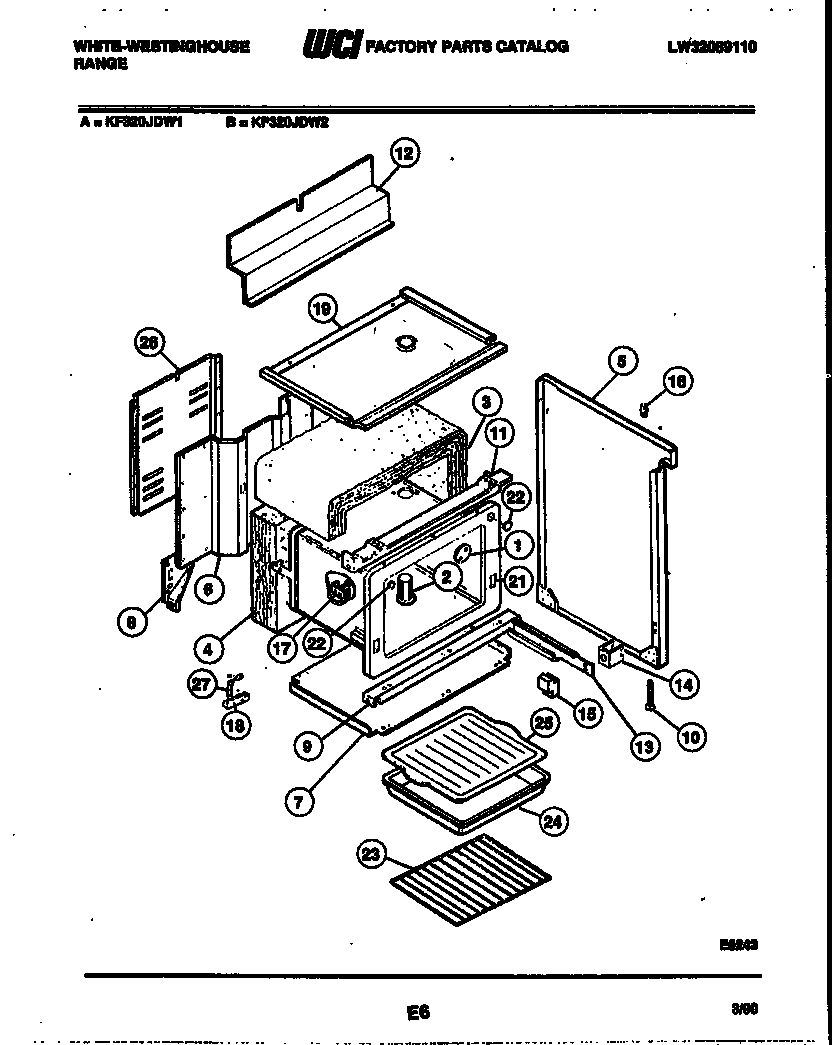

KF320JDD1 06 – BODY PARTS

Products

Position	Product
1	WCI 3017576
2	WCI 08012541
3	INSULATION – OVEN WRAP
4	INSULATION-OVEN BACK
5	SIDE PNL – RH (ALMD)
5A	WCI 08012530
6	WCI 3017535
7	WCI 3017394
8A	GUSSET – REAR (2)
9	CHANNEL-OVEN SUPT
10	SCREW-LEVELING (4)
11	WCI K001325472
12	WCI 3017602
13	WCI 08015746
13	RAIL, DRAWER LH
14	SPACER, DRAWER RAIL (2)
15	GUIDE-DRAWER FRNT (2)
16	BUMPER – COOKTOP (4)
17	BRACKET-THERMO BULB (2)
18	5304409888 Frigidaire Oven Terminal Block with Hardware
19	WCI 08012542
21	WCI 3204607
22	BUTTON-PLUG
23	316067902 Frigidaire Oven Rack
24	WCI 3206373
25	WCI 3051562
26	COVER – WIRE
27	STRAP-GROUND
