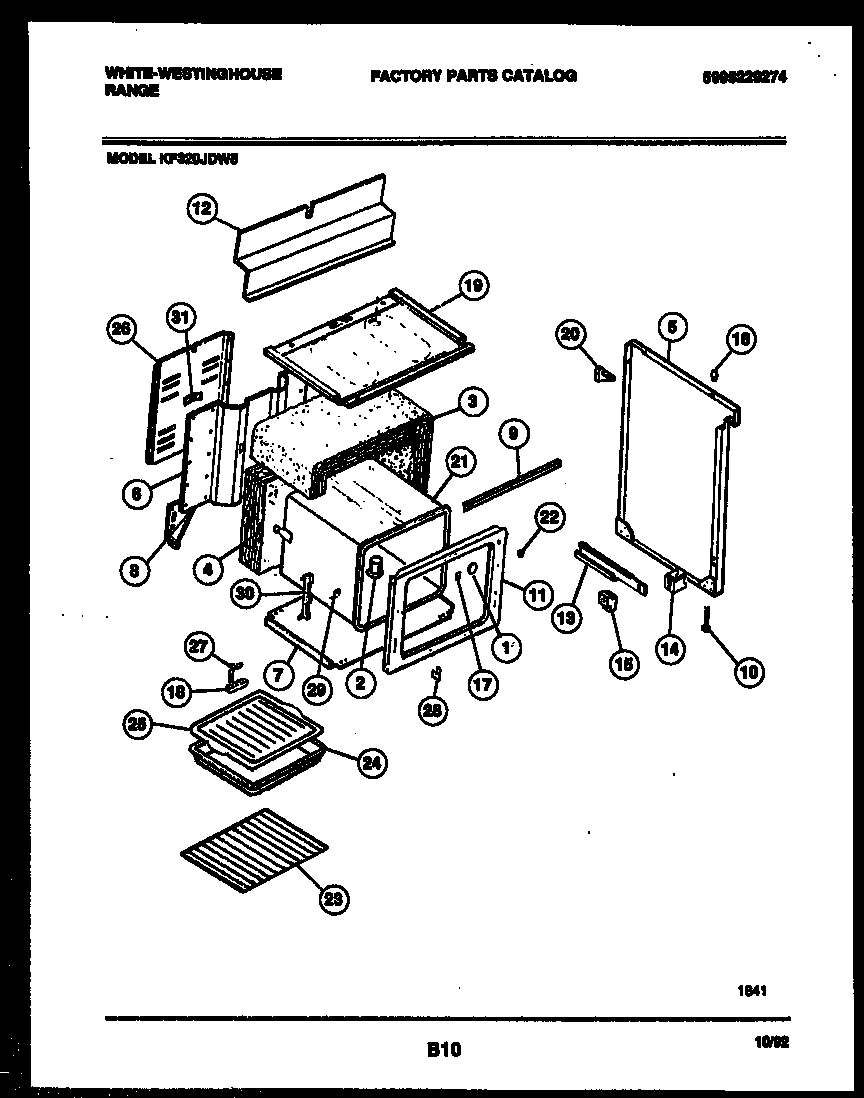

KF320JDD5 06 – BODY PARTS

Products

Position	Product
*70429	WIRING DIAGRAM (NOT FOR PURCHASE)
*70429	PLUG BUTTON (NON-ILLUSTRATED)
1	WCI 3017576
2	WCI 08012541
3	INSULATION – OVEN WRAP
4	WCI 5303274967
5A	SIDE PANEL LH-ALMD
5	SIDE PANEL RH-ALMD
6	PANEL-BACK
7	WCI 3206275
8A	WCI 3017482
8	WCI 3017481
9	WCI 5303207391
10	SCREW-LEVELING (4)
11	FRONT – OVEN
12	WCI 3206095
13A	RAIL, DRAWER LH
13	WCI 5308015746
14	SPACER, DRAWER RAIL (2)
15	GUIDE-DRAWER FRNT (2)
16	BUMPER, COOKTOP (4)
17	WCI 3202082
18	5304409888 Frigidaire Oven Terminal Block with Hardware
19	PANEL – SUBTOP
20	GUSSET – BKGRD (2)
21	OVEN LINER
22	BUTTON-PLUG
23	316067902 Frigidaire Oven Rack
24	WCI 5303292688
25	WCI 3205234
26	WIRE, COVER
27	PLATE=GROUND STRAP
27A	ANTI-TIP KIT, (NON-ILLUSTRATED)
29	WCI 3019063
30A	5303284616 Frigidaire Range Bulb Clip Thermostat
30	WCI 3201631
31	WCI 3016281
