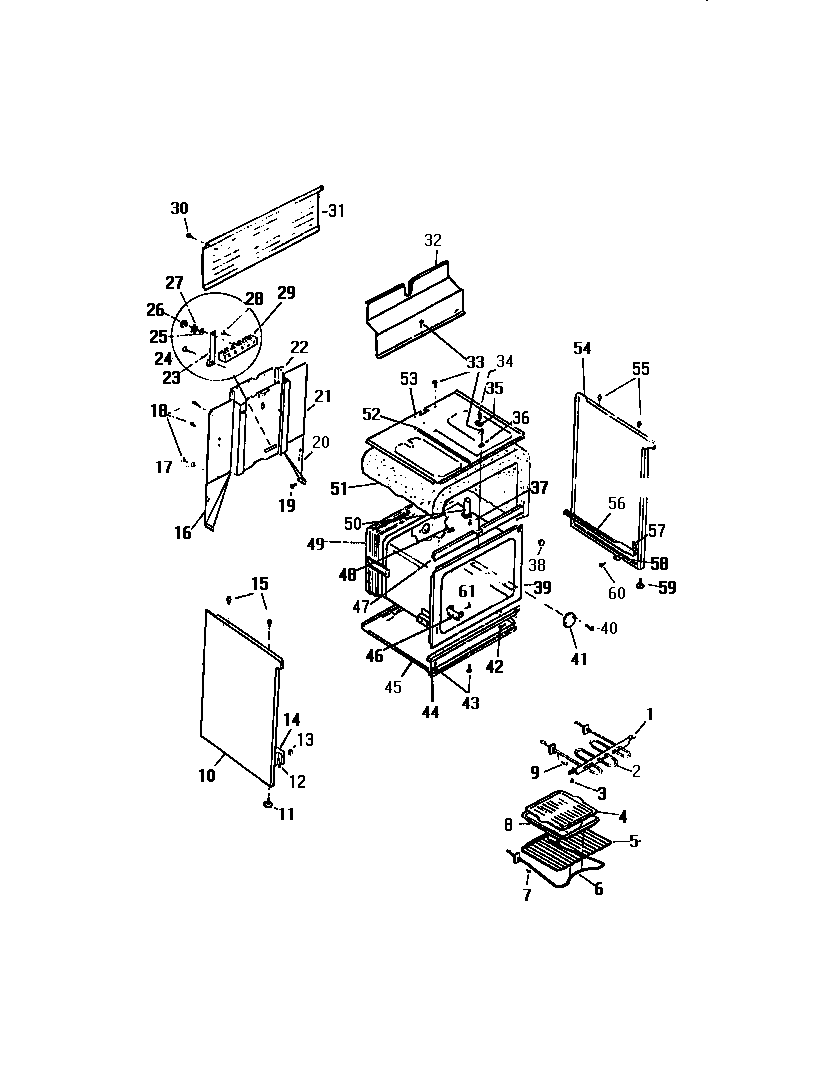

KF320JDH0 05 – BODY, SIDE PANELS

Products

Position	Product
1	HANGER
2	5303051516 Frigidaire Broil Element
4	WCI K1317972
5	RACK (2)
6	5303051519 Frigidaire Oven 2600W Bake Element
8	WCI K1317973
10	PANEL-END RH-WHEAT
14	RAIL, DWR, LH
16	GUSSET REAR, LH
17	WCI Q410505
20	GUSSET, RH
21	BACK
22	COVER, WIRE
23	STRAP-GROUND
25	WASHER (6)
26	WCI Q401002
27	WCI Q500411
29	TERMINAL BLOCK
31	COVER-WIRE
32	WCI K5029503
34	WCI K1164550
35	RETAINER
36	WASHER, PADDED
37	SCREW
38	PLUG-BUTTON 3/4“
39	WCI K1325537
41	WCI K1325524
42	SCREW
44	CHANNEL, OV. SUPT.
45	PANEL, BTM
46	BRACKET THERM. BULB
47	WCI K1325472
49	INSULATION, BACK
50	VENT TUBE
51	INSULATION, WRAP
52	ROD
53	WCI K5025802
54	WCI K5024609
55	BUMPER
56	RAIL, DWR., RH
57	SPACER, RAIL
58	GUIDE
59	LEG
60	SCREW
61	08002868 Frigidaire 0 Screw Assembly
