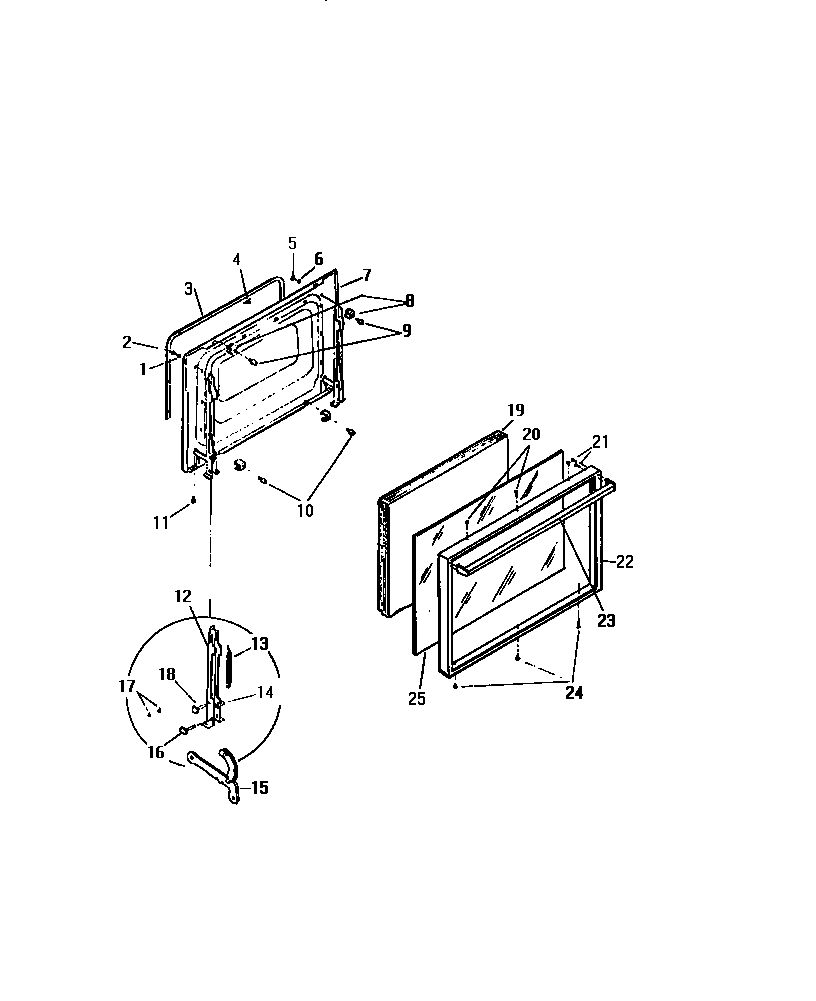

KF320JDW0 04 – DOOR

Written by

KF320JDW0 04 – DOOR

Products

Position	Product
3	GASKET (WITH CLIPS)
4	WCI K1309666
6	WASHER, PADDED
7	WCI K1317740
8	SPACER (4)
9	BUMPER TOP (2)
10	BUMPER BTM
12	CHANNEL ASSY (COMPLETE W/ROLLER & STUD)
13	SPRING
14	ROLLER PACKAGE-OVEN DOOR (2)
15	ARM ASSY.
16	AXLE
18	RIVET
19	INSULATION
21	SCREW
22	FRAME
23	HANDLE ASSY (INCLUDES STANCHION)
24	WCI K1164550
25	GLASS
