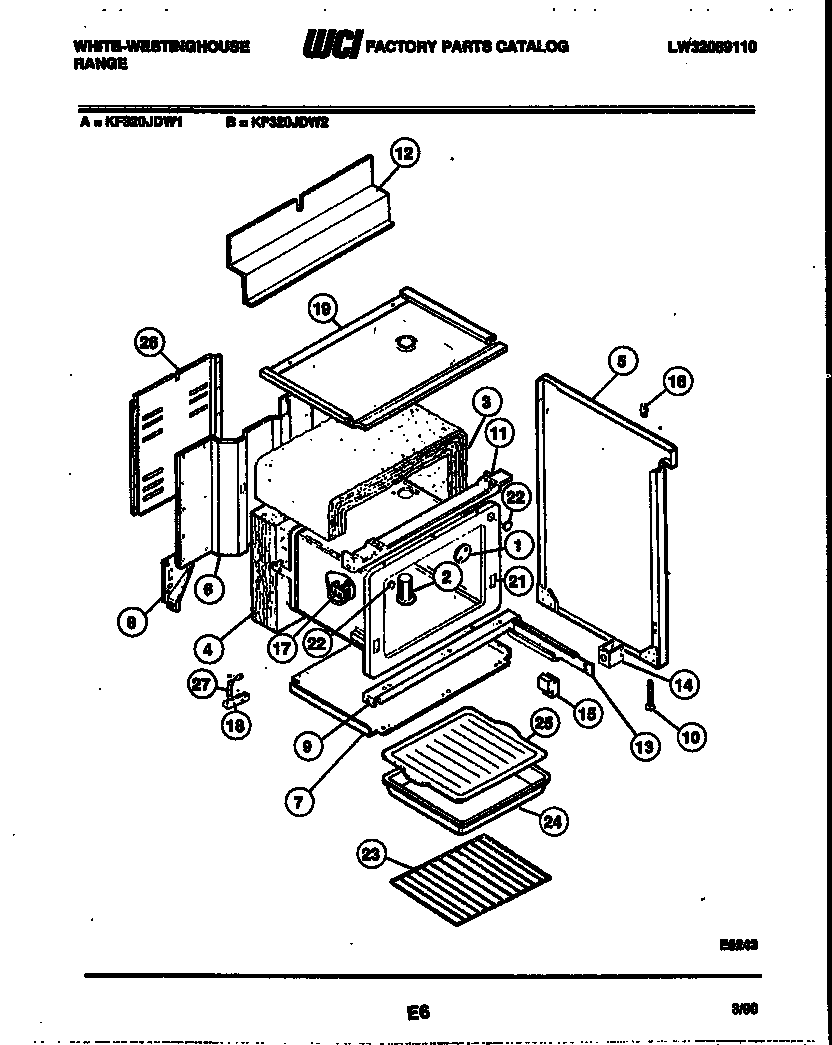

KF320JDW2 06 – BODY PARTS

Products

Position	Product
*74472	ANTI-TIP KIT, (NON-ILLUSTRATED)
1	WCI 3017576
2	WCI 08012541
3	INSULATION – OVEN WRAP
4	INSULATION-OVEN BACK
5	WCI 08012527
5A	WCI 08012528
6	WCI 3017535
7	WCI 3206275
8	WCI 3017481
8A	WCI 3017482
9	CHANNEL – OVEN SUPPORT LOWER
10	LEG, LEVELLER (4)
11	WCI 5303208360
12	WCI 3206095
13	WCI 08015746
13	RAIL, DRAWER LH
14	SPACER, DRAWER RAIL (2)
15	GUIDE-DRAWER FRNT (2)
16	BUMPER – COOKTOP (4)
17	BRACKET-THERMO BULB (2)
18	5304409888 Frigidaire Oven Terminal Block with Hardware
19	WCI 08012542
21	WCI 3204607
22	BUTTON-PLUG
23	316067902 Frigidaire Oven Rack
24	WCI 3206373
25	WCI 3205234
26	COVER – WIRE
27	STRAP-GROUND
