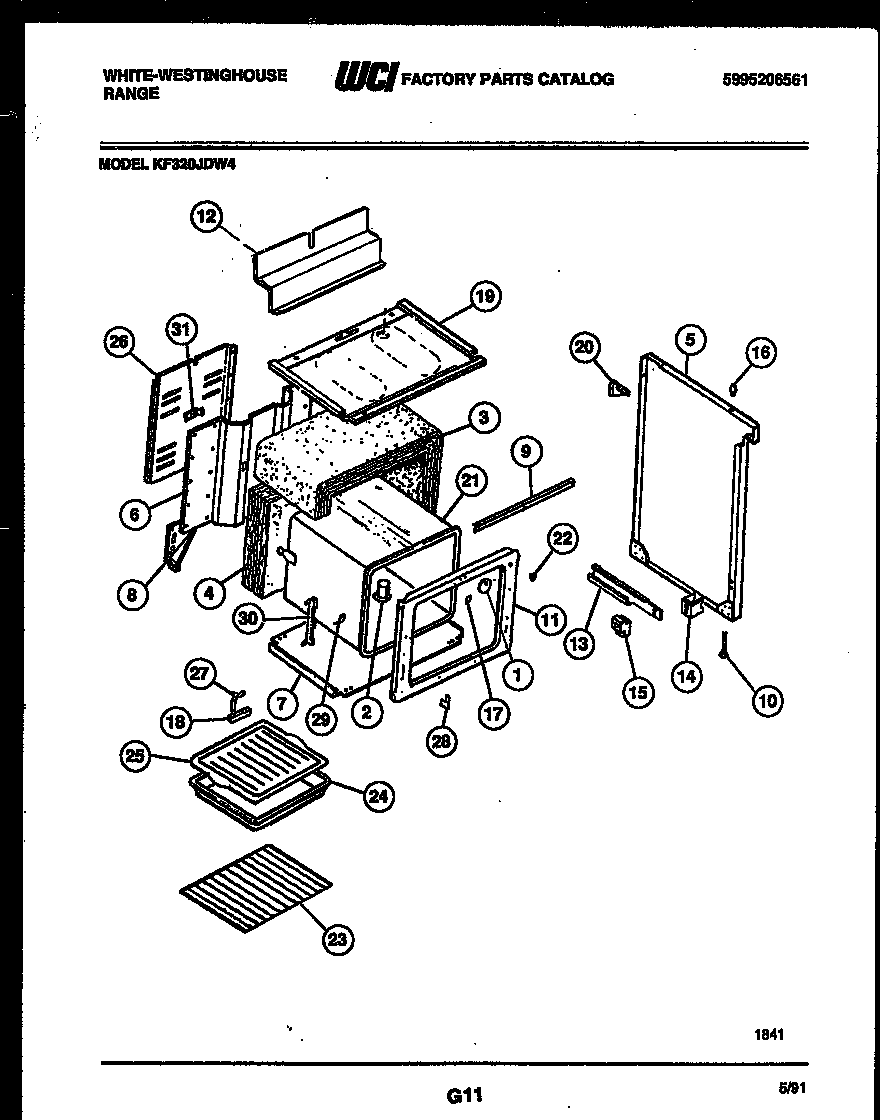

KF320JDW4 06 – BODY PARTS

Products

PositionProduct
*46605WCI 191S021P21
*46605PLUG BUTTON (NON-ILLUSTRATED)
1WCI 3017576
2WCI 08012541
3INSULATION – OVEN WRAP
4INSULATION
5ASIDE PANEL, LH WHITE
5SIDE PANEL, RH WHITE
6PANEL-BACK
7WCI 3206275
8WCI 3017481
8AWCI 3017482
9WCI 5303207391
10SCREW-LEVELING (4)
11WCI 5303207446
12WCI 3206095
13RAIL, DRAWER LH
13WCI 5308015746
14SPACER, DRAWER RAIL (2)
15GUIDE-DRAWER FRNT (2)
16BUMPER, COOKTOP (4)
17WCI 3202082
185304409888 Frigidaire Oven Terminal Block with Hardware
19WCI 08012542
20GUSSET – BKGRD (2)
21BODY-OVEN
22WCI 3051784
23316067902 Frigidaire Oven Rack
24WCI 3205539
25WCI 3205234
26WIRE, COVER
27PLATE=GROUND STRAP
27AANTI-TIP KIT, (NON-ILLUSTRATED)
28WCI 3019063
29WCI 3201632
30AWCI 5300009126
30WCI 3201631
31WCI 3016281
