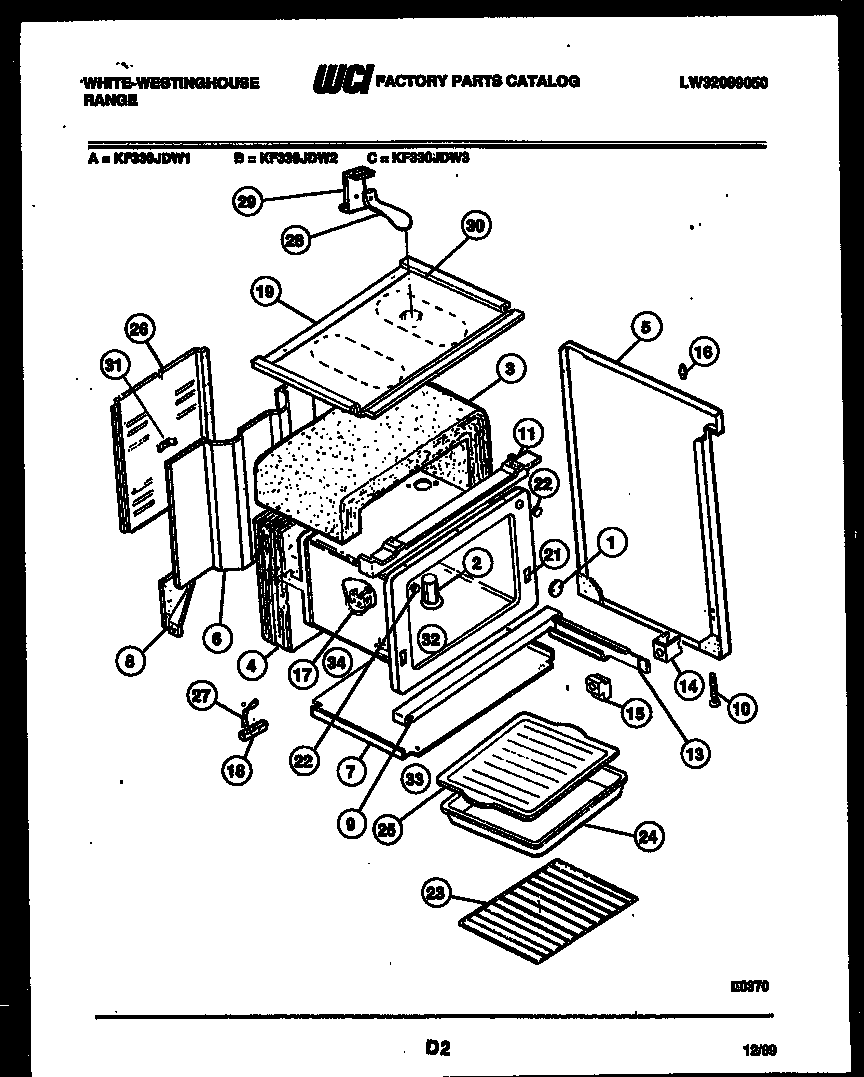

KF330JDD2 06 – BODY PARTS

Products

Position	Product
1	WCI 3017576
2	WCI K005053701
3	INSULATION – OVEN WRAP
4	INSULATION-OVEN BACK
6	WCI 3017535
7	WCI 3203574
8	WCI K005285802
8A	WCI K001325113
9	CHANNEL – OVEN SUPPORT LOWER
10	LEG, LEVELLER (4)
11	CHANNEL-OVEN SPRT.
13A	WCI K005269902
13	WCI 08015746
14	SPACER-DRAWER RAIL (2)
15	GUIDE-DRAWER FRNT (2)
16	BUMPER
17	BRACKET-THERMO BULB (2)
18	5304409888 Frigidaire Oven Terminal Block with Hardware
19	WCI K005025704
21	WCI 3204607
22	WCI 3051784
23	316067902 Frigidaire Oven Rack
24	WCI 3206373
25A	ANTI-TIP KIT, (NON-ILLUSTRATED)
25	WCI 3205234
26	COVER – WIRE
27	STRAP-GROUND
28	WCI K005130601
29	WCI K005130701
30	WCI K005303702
