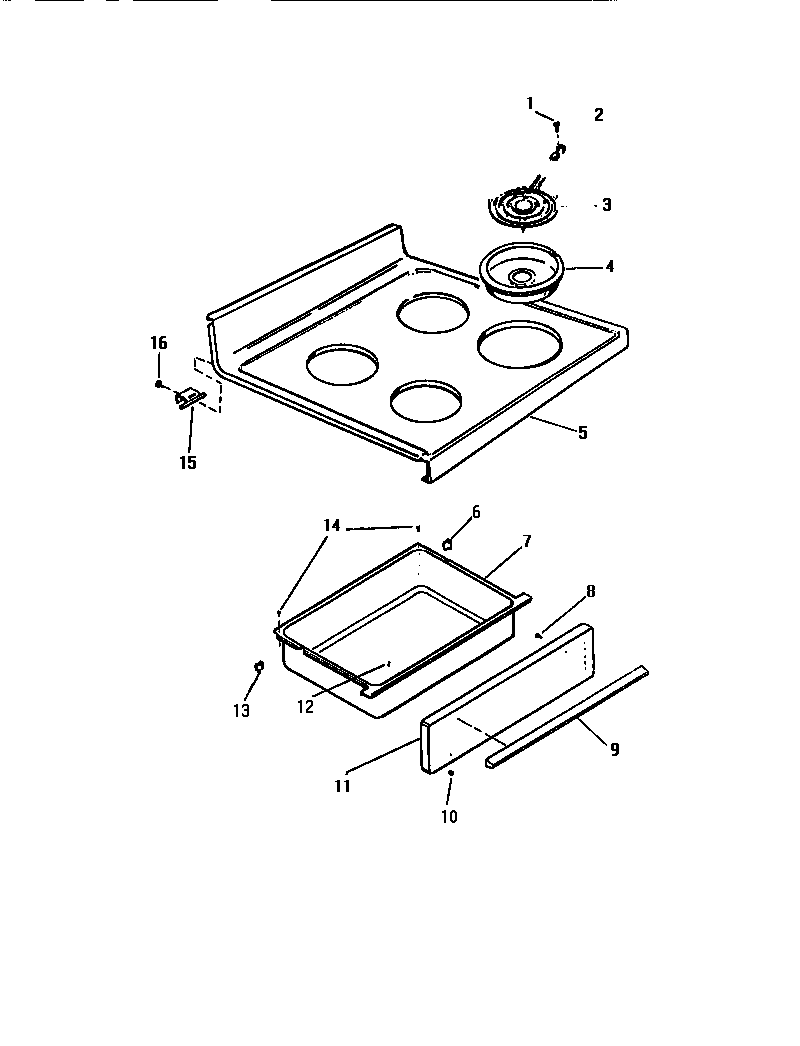

KF330JDDO 03 – TOP, DRAWER

KF330JDDO 03 – TOP, DRAWER

Written by

in

KF330JDDO 03 – TOP, DRAWER

Products

PositionProduct
15308014215 Frigidaire Oven Screw
25303935058 Frigidaire Oven Burner Receptacle Kit
3316442301 Frigidaire Oven 8 Coil Element 2600W
3318372211 Frigidaire Oven 6" Electric Range Burner Kit
4316048413 Frigidaire Oven Range Chrome 8" Drip Bow
4316048414 Frigidaire Oven Range Chrome 6" Drip Bowl
5WCI K5024209
5WCI K5024207
5WCI K5024206
5WCI K5024210
7DRAWER
9HANDLE – DRAWER (CHROME)
105303013272 Frigidaire Oven Nut
11PANEL DRAWER, ALMOND
13GUIDE
14SCREW
15WCI K5024901
1608002868 Frigidaire 0 Screw Assembly
