KF330JDDO 05 – DOOR LATCH ASSY. – Aparts

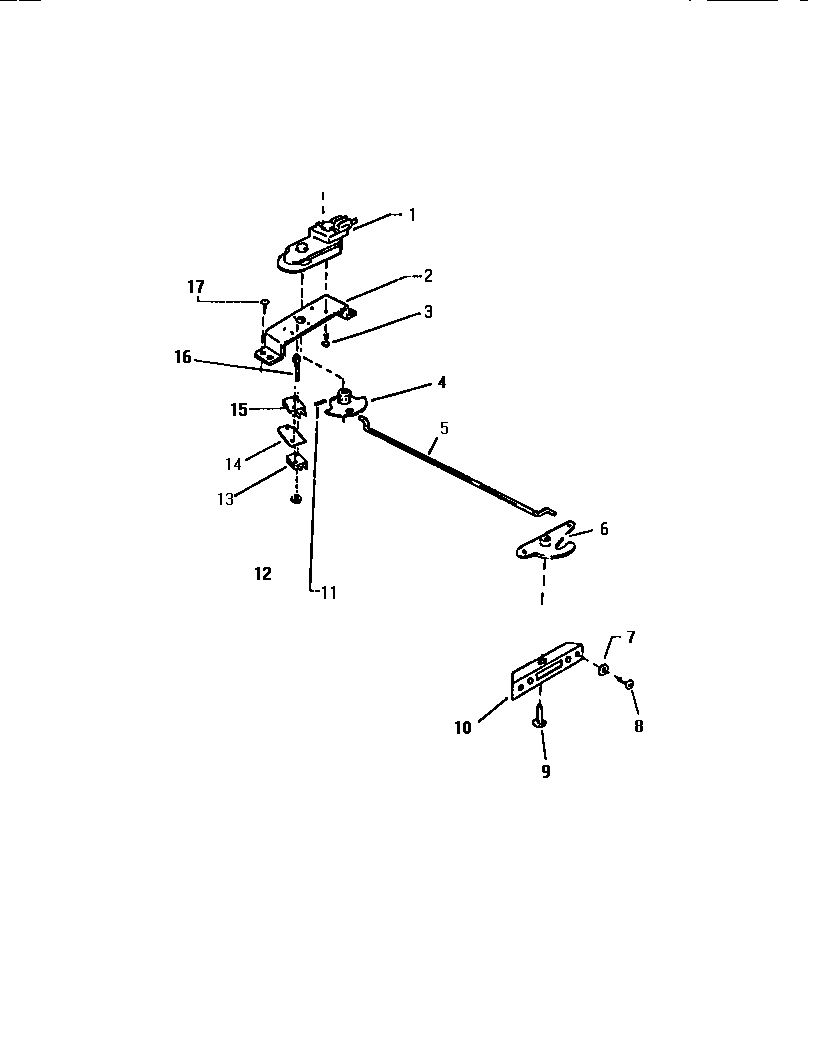

KF330JDDO 05 – DOOR LATCH ASSY.

Products

Position	Product
1	WCI K5151603
2	SUPPORT
3	WCI K5151604
4	WCI K5151605
5	WCI K5271201
6	WCI K5260202
7	WASHER, PADDED
8	WCI K1164550
9	AXLE
10	HOUSING, DOOR LATCH
11	WCI K5151606
12	5303013272 Frigidaire Oven Nut
13	WCI K1167190
14	INSULATOR
15	SWITCH-LOWER
16	WCI K5151610
17	08002868 Frigidaire 0 Screw Assembly
