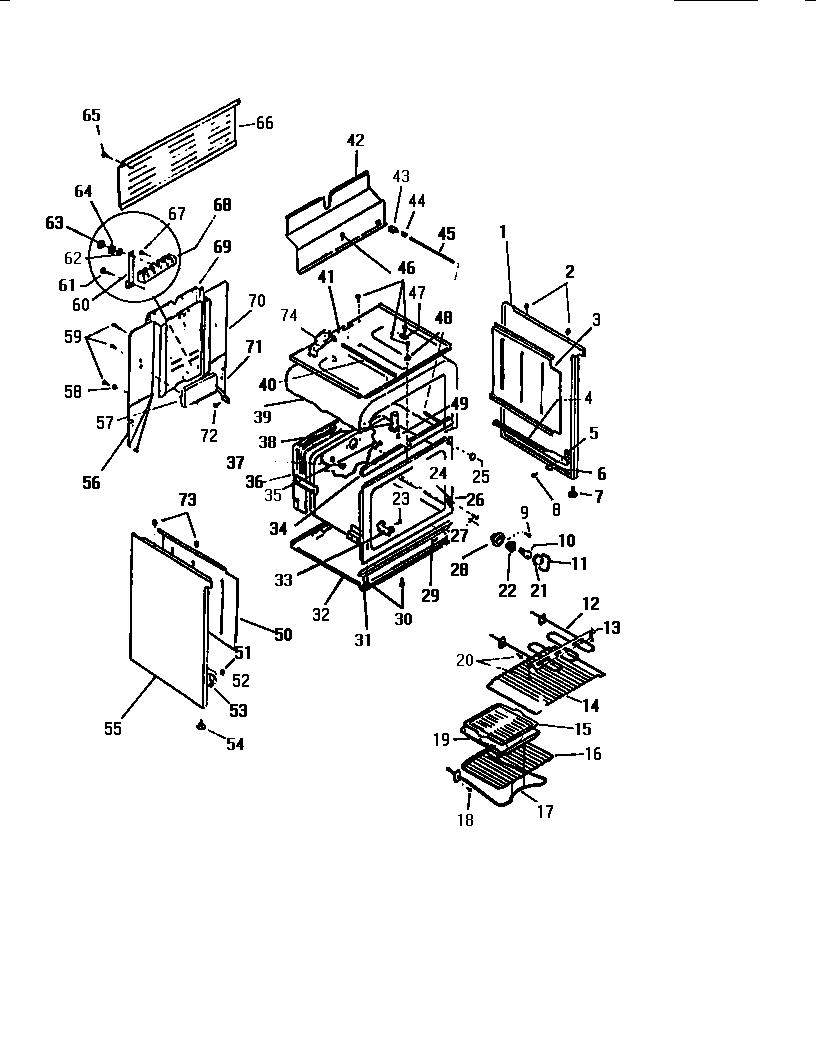

KF330JDDO 06 – BODY, SIDE PANELS

Products

Position	Product
1	END PANEL, RH, ALMOND
4	RAIL, DWR., RH
8	WCI K1164589
10	WCI Q63749
11	RETAINING WIRE
12	5303051516 Frigidaire Broil Element
13	HANGER
14	WCI K5133501
15	WCI K1317972
16	RACK (2)
17	5303051519 Frigidaire Oven 2600W Bake Element
19	WCI K1317973
21	5304524341 Frigidaire Lens
22	316116400 Frigidaire Oven Light Socket
23	08002868 Frigidaire 0 Screw Assembly
24	WCI K5319101
25	PLUG-BUTTON 3/4``
26	WCI K1325537
27	WCI K1164550
28	CUP, OVEN LT
30	WCI K1164642
31	CHANNEL, OV. SUPT.
32	WCI K5276502
33	BRACKET THERM. BULB
34	CHANNEL, OVEN SUPPORT
36	INSULATION-OVEN BACK
37	WCI KGM142017
38	VENT TUBE
39	WCI K1311331
40	ROD
41	WCI K5025802
42	WCI K5029503
43	SWITCH-DOOR
44	WCI K1322682
45	PUSH ROD
47	RETAINER
48	WASHER, PADDED
49	SCREW
50	RETAINER-INSUL (2)
51	GUIDE
52	RAIL, DWR, LH
53	SPACER, RAIL
54	LEG
55	END PANEL, LH, ALMOND
55	WCI K5024606
56	GUSSET REAR, LH
57	WCI K5134501
58	WCI Q410505
60	STRAP-GROUND
62	WASHER (6)
63	WCI Q401002
64	WCI Q500411
66	COVER-WIRE
67	SCREW
68	TERMINAL BLOCK
69	COVER, WIRE
70	BACK
71	GUSSET, RH
73	BUMPER
