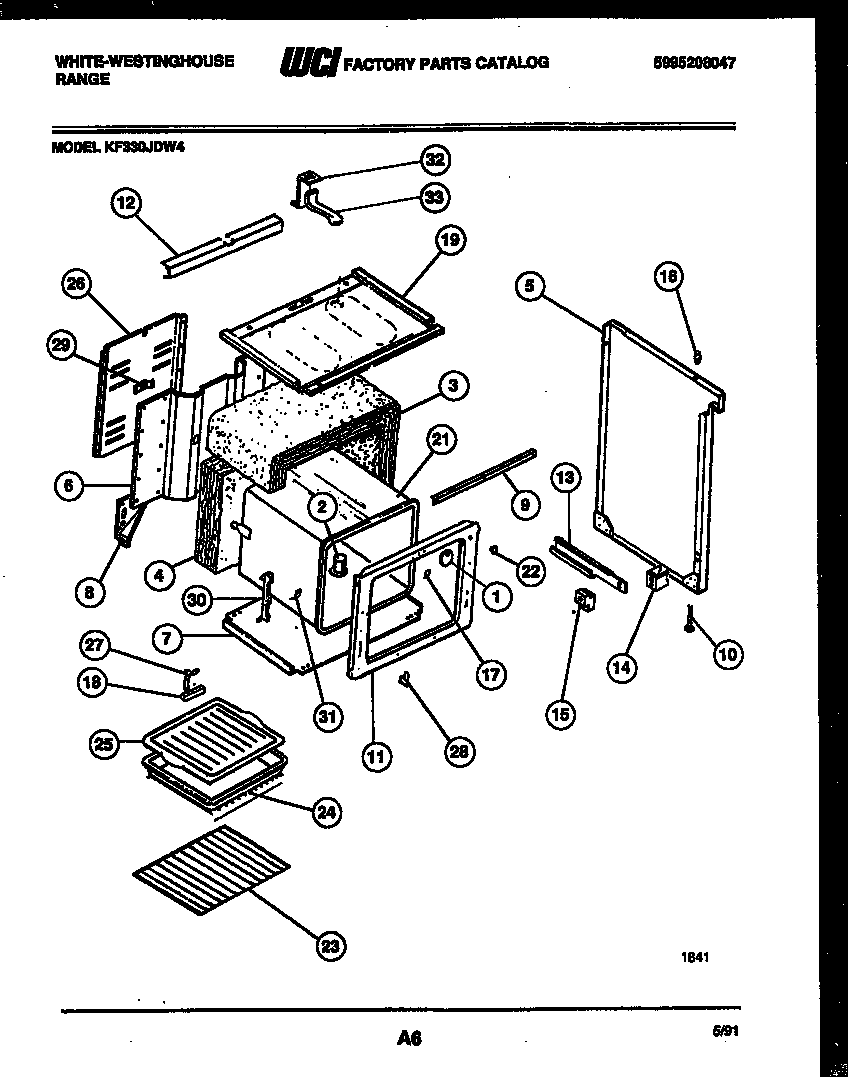

KF330JDW4 06 – BODY PARTS

Products

Position	Product
*47610	WCI 5300009126
*47610	WCI 19100210022
*47610	ANTI-TIP KIT, (NON-ILLUSTRATED)
1	WCI 3017576
2	TUBE-OVEN VENT
3	INSULATION – OVEN WRAP
4	WCI 5303274967
5	SIDE PANEL, RH WHITE
5A	SIDE PANEL, LH WHITE
6	PANEL-BACK
7	WCI 3206275
8	WCI 3017481
8A	WCI 3017482
9	WCI 5303207391
10	SCREW-LEVELING (4)
11	WCI 5303207446
12	WCI 3205257
13	WCI 5308015746
13A	RAIL, DRAWER LH
14	SPACER, DRAWER RAIL (2)
15	GUIDE-DRAWER FRNT (2)
16	BUMPER, COOKTOP (4)
17	WCI 3202082
18	5304409888 Frigidaire Oven Terminal Block with Hardware
19	WCI K005025704
21	BODY-OVEN
22	BUTTON-PLUG
23	316067902 Frigidaire Oven Rack
24	WCI 3205539
25	WCI 3205234
26	WIRE, COVER
27	PLATE=GROUND STRAP
28	WCI 3019063
29	WCI 3016281
30	WCI 3201631
31	WCI 3201632
32	BRACKET, VENT TUBE
33	WCI 5303209018
