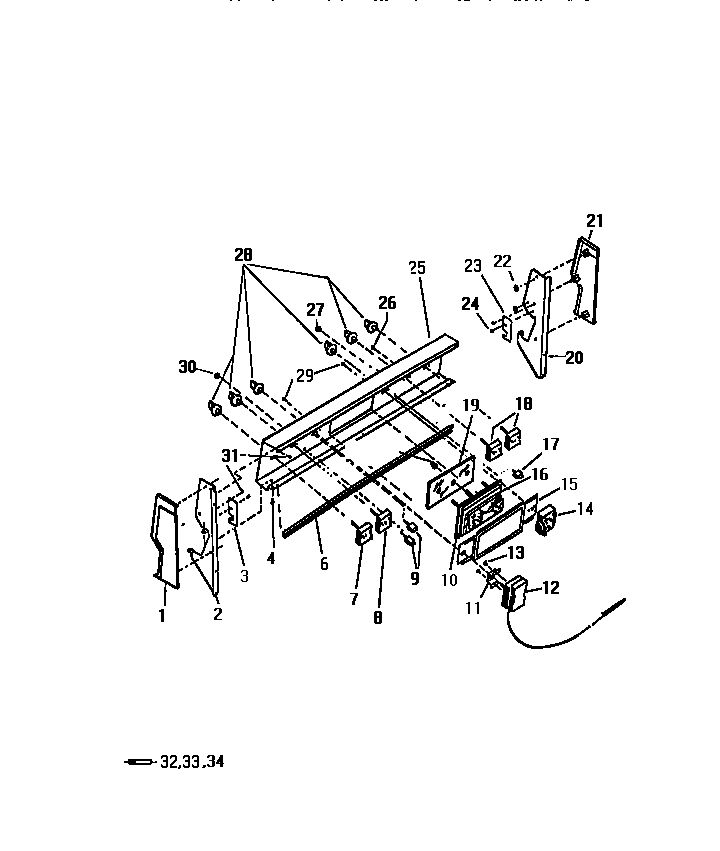

KF350GDD0 02 – BACKGUARD

Products

Position	Product
1	WCI K5030401
2	WCI K5025201
4	WCI K1164566
5	WCI K5032201
6	KNOB, TIMER
9	LIGHT, SIGNAL (CLEAN & OVEN 250V.)
10	BEZEL
11	WCI K5267103
12	WCI K1324562
13	SCREW – THERMO BRACKET 6-32 X 3/16 (2)
14	WCI K5041901
15	WCI K5296301
16	WCI K5033001
17	LIGHT,SIGNAL (SURFACE UNIT 125V)
18	5303935086 Frigidaire Oven Top Burner Switch Kit
19	WCI K1167678
20	WCI K5025202
21	WCI K5030402
22	NUT (3)
23	WCI K5025001
24	08002868 Frigidaire 0 Screw Assembly
25	WCI K5031101
28	WCI K5026901
29	SCREW
30	LENS
32	WCI K5044001
33	WCI K5044101
34	WCI K5044102
