KF350GDD1 02 – BACKGUARD

KF350GDD1 02 – BACKGUARD

Written by

in

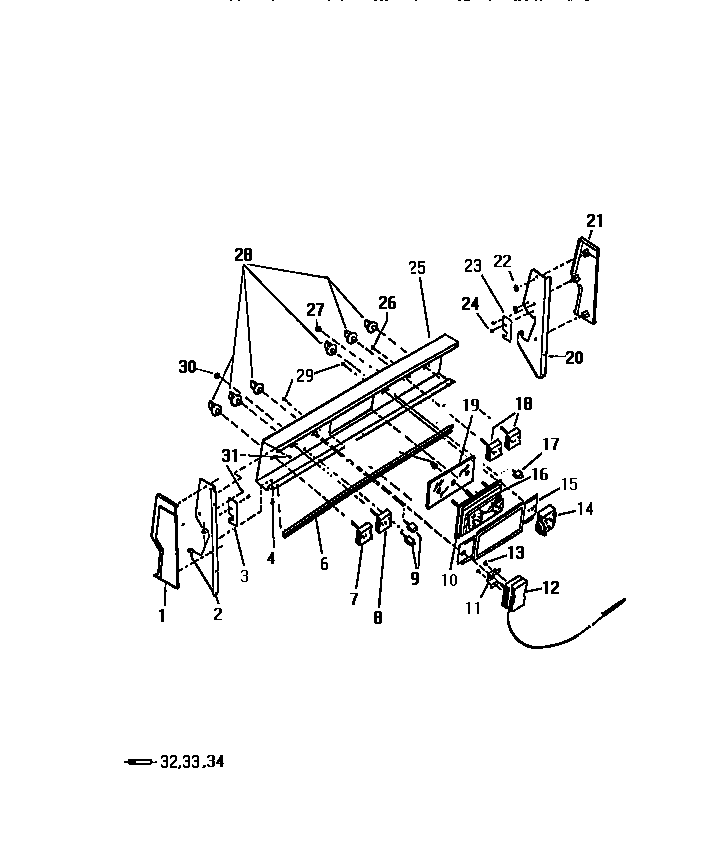

KF350GDD1 02 – BACKGUARD

Products

PositionProduct
1WCI K5030401
2WCI K5025201
4WCI K1164566
5WCI K5032201
6KNOB, TIMER
9LIGHT, SIGNAL (CLEAN & OVEN 250V.)
10BEZEL
11WCI K5267103
12WCI K1324562
13SCREW – THERMO BRACKET 6-32 X 3/16 (2)
14WCI K5041901
15WCI K5296301
16WCI K5033001
17LIGHT,SIGNAL (SURFACE UNIT 125V)
185303935086 Frigidaire Oven Top Burner Switch Kit
19WCI K1167678
20WCI K5025202
21WCI K5030402
22NUT (3)
23WCI K5025001
2408002868 Frigidaire 0 Screw Assembly
25WCI K5031101
28KNOB (6)
29SCREW
30LENS
32WCI K5044001
33WCI K5044101
34WCI K5044102
