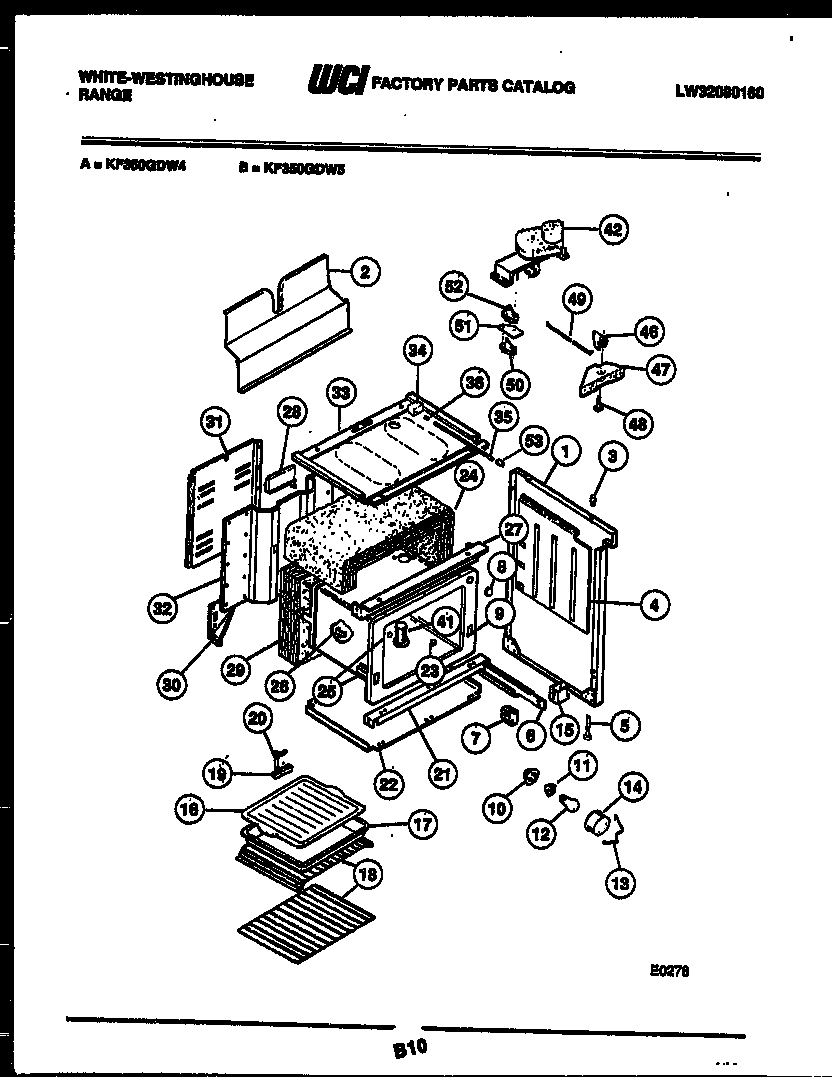

KF350GDD4 06 – BODY PARTS

KF350GDD4 06 – BODY PARTS

Written by

in

KF350GDD4 06 – BODY PARTS

Products

PositionProduct
1SIDE PANEL LH-ALMD
1SIDE PANEL RH-ALMD
2WCI K005029503
3BUMPER, COOKTOP (4)
4RETAINER, INSULATION (2)
5SCREW-LEVELING (4)
6RAIL, DRAWER LH
6WCI 5308015746
7GUIDE-DRAWER FRNT (2)
9WCI 3204607
10WCI 3051511
11316116400 Frigidaire Oven Light Socket
12316538904 Frigidaire Oven Lamp Light
13RETAINER-LENS
145304524341 Frigidaire Lens
15SPACER, DRAWER RAIL (2)
16WCI 3203164
17WCI 3206373
18RACK-OFFSET
18316067902 Frigidaire Oven Rack
195304409888 Frigidaire Oven Terminal Block with Hardware
20STRAP-GROUND
21CHANNEL – OVEN SUPPORT LOWER
22WCI 3051635
23BUTTON-PLUG
25PLUG BUTTON – THERMO BULB HOLE
26WCI K001311369
27CHANNEL-OVEN SUPPORT UPPER
28WCI 3051634
29INSULATION
30GUSSET – REAR (2)
31WIRE, COVER
32GUSSET-REAR RH
33WCI 08012542
34SWITCH, DOOR
35WCI K001167847
36WCI 08007444
41TUBE-OVEN VENT
42LATCH, MOTOR
46WCI 3202387
47HOUSING-DOOR LATCH
48AXLE – HINGE (2)
49WCI 3051649
50SWITCH-LOWER
51WCI 08003090
52WCI 5301176190
53WCI 3051251
