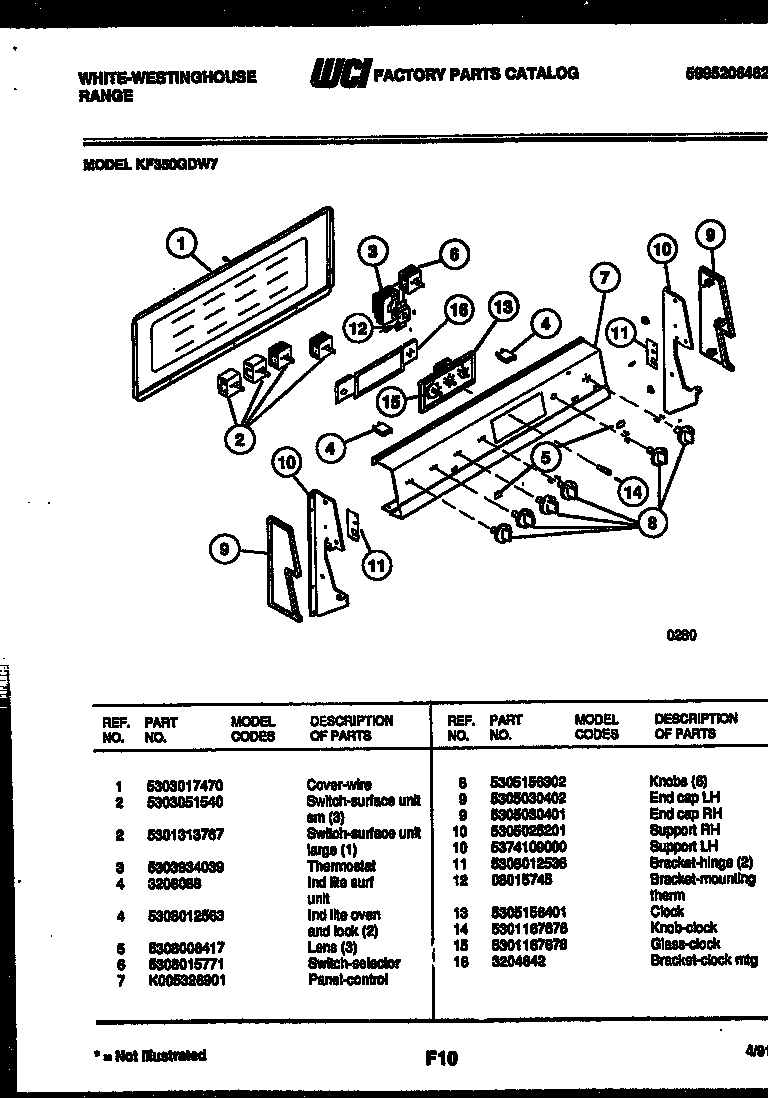

KF350GDD7 02 – CONTROL PANEL

Products

Position	Product
1	COVER, WIRE.
2	5303935086 Frigidaire Oven Top Burner Switch Kit
3	THERMOSTAT
4	LIGHT-PILOT OVEN & CLEAN
4	IND LITE SURF UNIT
5	LENS (2)
6	WCI 5308015771
7	WCI K005326901
8	KNOBS (6)
9	WCI 5305030401
9	WCI 5305030402
10	SUPPORT LH
10	SUPPORT RH
11	BRACKET, HINGE (2)
12	BRACKET-THERM MTG
13	WCI 5305156401
14	WCI 5301167676
15	WCI 5301167678
16	BRACKET-MTG CLOCK
