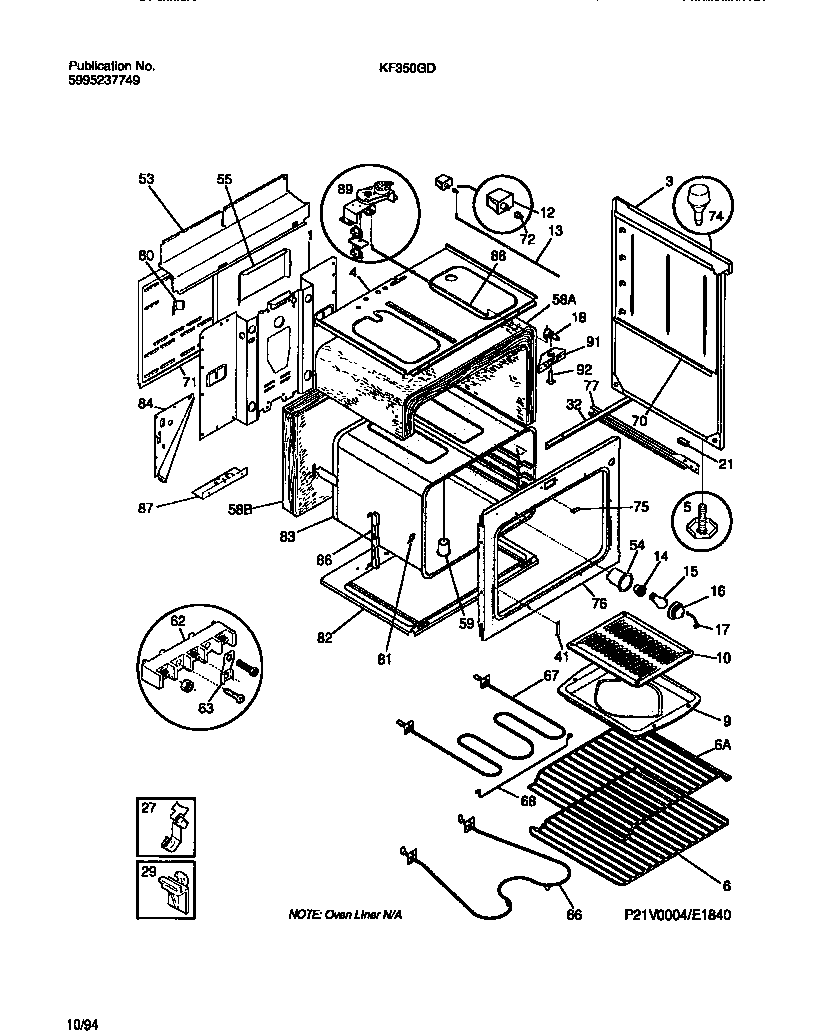

| 1 | PANEL-BACK |
| 3 | SIDE PANEL RH-ALMD |
| 3A | SIDE PANEL LH-ALMD |
| 4 | PANEL - SUBTOP |
| 5A | ANTI-TIP KIT, (NON-ILLUSTRATED) |
| 5 | SCREW-LEVELING (4) |
| 6A | RACK-OFFSET |
| 6 | 316067902 Frigidaire Oven Rack |
| 9 | WCI 5303292688 |
| 10 | WCI 3205234 |
| 12 | SWITCH, DOOR |
| 13 | WCI 08007445 |
| 14 | 316116400 Frigidaire Oven Light Socket |
| 15 | 316538904 Frigidaire Oven Lamp Light |
| 16 | 5304524341 Frigidaire Lens |
| 17 | RETAINER-LENS |
| 18 | LATCH-DOOR |
| 21 | SPACER, DRAWER RAIL (2) |
| 27 | 5303284616 Frigidaire Range Bulb Clip Thermostat |
| 29 | GUIDE-DRAWER FRNT (2) |
| 32 | WCI 5303207391 |
| 41 | WCI 3019063 |
| 53 | WCI 3206095 |
| 54 | WCI 5303271606 |
| 55 | WCI 3051634 |
| 58A | INSULATION, OVEN WRAP |
| 58B | INSULATION |
| 59 | TUBE-OVEN VENT |
| 62A | 316205500 Frigidaire Oven Nut |
| 62 | 5304409888 Frigidaire Oven Terminal Block with Hardware |
| 63 | PLATE=GROUND STRAP |
| 66 | 5303051516 Frigidaire Broil Element |
| 67 | 5303051519 Frigidaire Oven 2600W Bake Element |
| 68 | WCI 3205756 |
| 70 | RETAINER, INSULATION (2) |
| 71 | WIRE, COVER |
| 72 | WCI 08007444 |
| 74 | BUMPER, COOKTOP (4) |
| 75 | WCI 3202082 |
| 76 | FRONT - OVEN |
| 77A | RAIL, DRAWER LH |
| 77 | WCI 5308015746 |
| 80 | WCI 3016281 |
| 81 | WCI 3201632 |
| 82 | WCI 3206275 |
| 83 | OVEN LINER |
| 83A | PLUG BUTTON (NON-ILLUSTRATED) |
| 84A | WCI 3017481 |
| 84 | WCI 3017482 |
| 86 | WCI 3201631 |
| 87 | WCI 3203574 |
| 88 | WCI 3051649 |
| 89 | LATCH, MOTOR |
| 91 | HOUSING-DOOR LATCH |
| 92 | AXLE - HINGE (2) |
