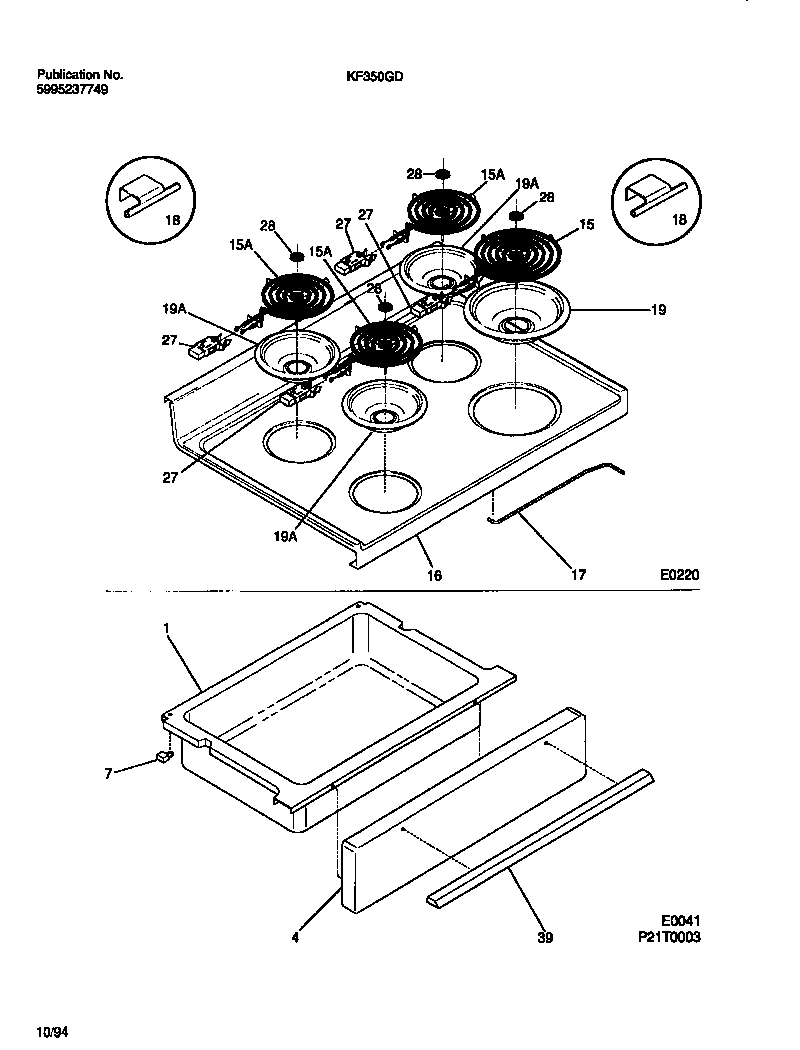

KF350GDD8 04 – TOP/DRAWER

KF350GDD8 04 – TOP/DRAWER

Written by

in

KF350GDD8 04 – TOP/DRAWER

Products

PositionProduct
1DRAWER
1ASCREW-SHOULDER
4WCI 5301325100
7GUIDE – DRAWER REAR (2)
15A318372211 Frigidaire Oven 6" Electric Range Burner Kit
15316442301 Frigidaire Oven 8 Coil Element 2600W
16WCI 5303292690
17ROD – TOP SUPPORT LH
17AROD – TOP SUPPORT RH
18PIN, HINGE (2)
19A316048414 Frigidaire Oven Range Chrome 6" Drip Bowl
19316048413 Frigidaire Oven Range Chrome 8" Drip Bow
275303935058 Frigidaire Oven Burner Receptacle Kit
39HANDLE
