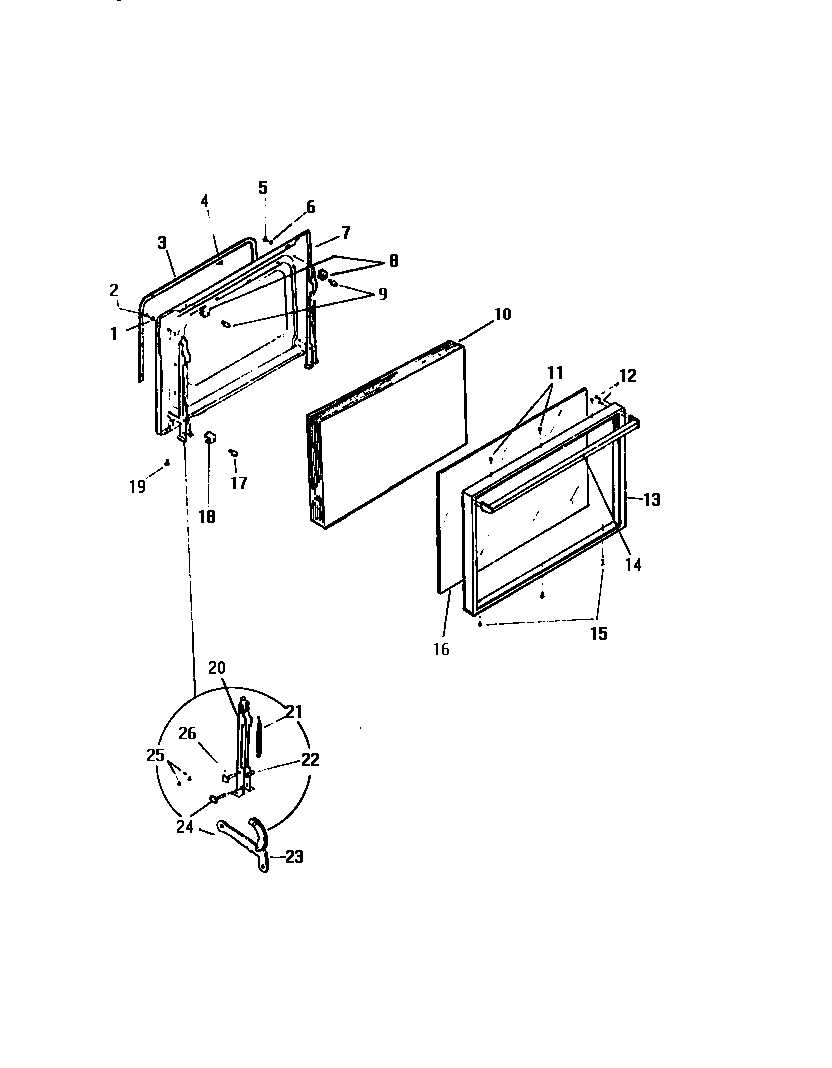

KF350GDF3 04 – DOOR

Written by

KF350GDF3 04 – DOOR

Products

Position	Product
3	GASKET (WITH CLIPS)
4	WCI K1309666
6	WASHER, PADDED
7	WCI K1317740
9	BUMPER TOP (2)
10	WCI K1325629
12	SCREW
13	FRAME
14	HANDLE ASSY (INCLUDES STANCHION)
16	GLASS
17	BUMPER BTM
18	SPACER (4)
20	CHANNEL ASSY (COMPLETE W/ROLLER & STUD)
21	SPRING
22	ROLLER PACKAGE-OVEN DOOR (2)
23	ARM ASSY.
24	AXLE
25	WCI K1164550
26	RIVET
