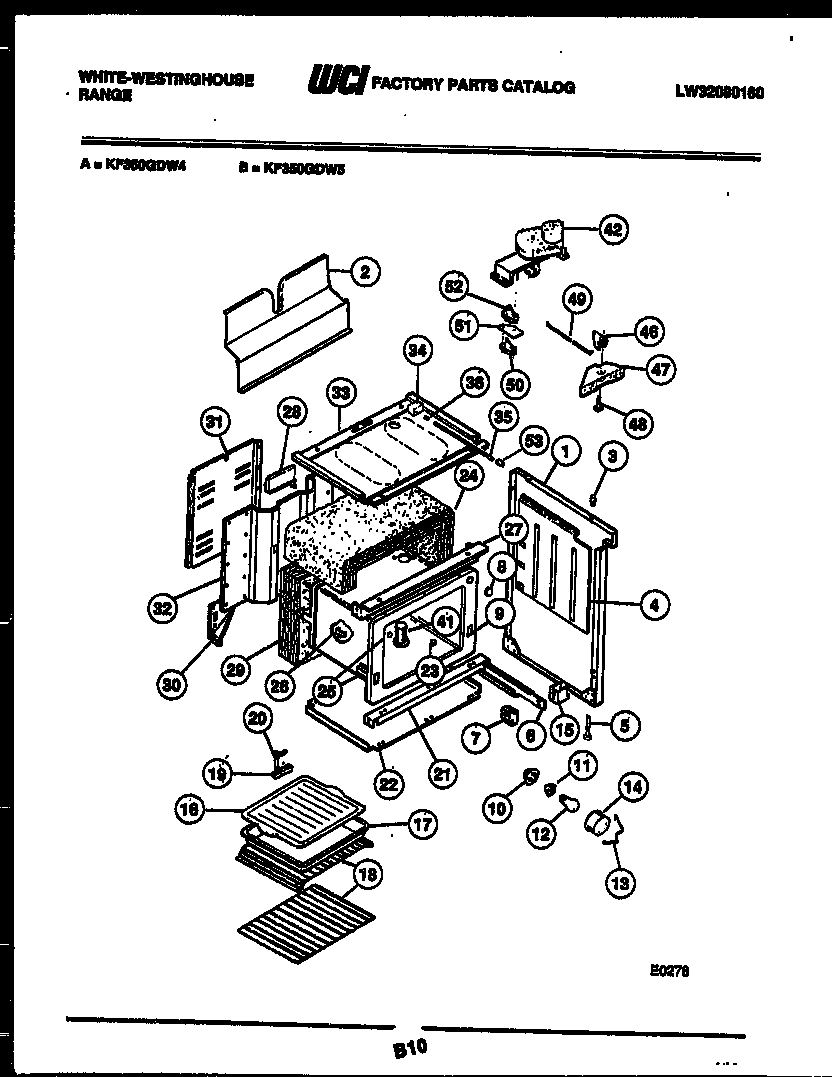

KF350GDF5 06 – BODY PARTS

KF350GDF5 06 – BODY PARTS

Written by

in

KF350GDF5 06 – BODY PARTS

Products

PositionProduct
*71477ANTI-TIP KIT, (NON-ILLUSTRATED)
1WCI K005024606
1WCI K005024605
2WCI 3206095
3BUMPER, COOKTOP (4)
4RETAINER, INSULATION (2)
5LEG, LEVELLER (4)
6RAIL, DRAWER LH
6WCI 5308015746
7GUIDE-DRAWER FRNT (2)
9WCI 3204607
10WCI 3051511
11316116400 Frigidaire Oven Light Socket
12316538904 Frigidaire Oven Lamp Light
13RETAINER-LENS
145304524341 Frigidaire Lens
15SPACER, DRAWER RAIL (2)
16WCI 3205234
17WCI 3206373
18RACK-OFFSET
18316067902 Frigidaire Oven Rack
195304409888 Frigidaire Oven Terminal Block with Hardware
20STRAP-GROUND
21CHANNEL – OVEN SUPPORT LOWER
22WCI 3206275
23BUTTON-PLUG
25PLUG BUTTON – THERMO BULB HOLE
26WCI K001311369
27CHANNEL-OVEN SUPPORT UPPER
28WCI 3051634
29INSULATION
30WCI 3017482
30WCI 3017481
31WIRE, COVER
32WCI 3017535
33WCI 08012542
34SWITCH, DOOR
35WCI 08007445
36WCI 08007444
41TUBE-OVEN VENT
42LATCH, MOTOR
46WCI 3202387
47HOUSING-DOOR LATCH
48AXLE – HINGE (2)
49WCI 3051649
50SWITCH-LOWER
51WCI 08003090
52WCI 5301176190
53WCI 3051251
