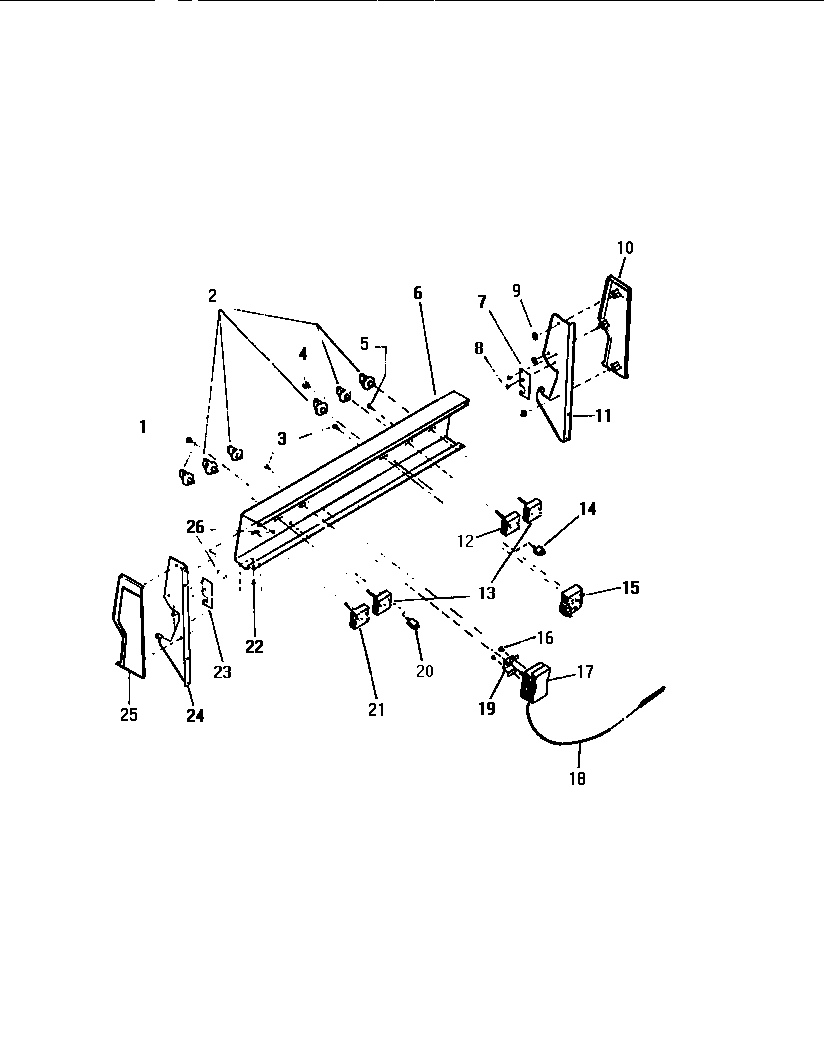

KF350GDH3 02 – BACKGUARD

Products

Position	Product
2	KNOB (6)
3	SCREW – THERMO BRACKET 6-32 X 3/16 (2)
4	LENS
5	SCREW
6	WCI K6029602
8	08002868 Frigidaire 0 Screw Assembly
9	NUT (3)
10	WCI K5030402
11	WCI K5025202
13	5303935086 Frigidaire Oven Top Burner Switch Kit
15	SWITCH SELEC.
16	SCREW
17	THERMOSTAT
18	WCI K1305350
19	BRACKET
20	LIGHT SIGNAL (OVEN 250V)
22	WCI K1164566
23	WCI K5025001
24	WCI K5025201
25	WCI K5030401
