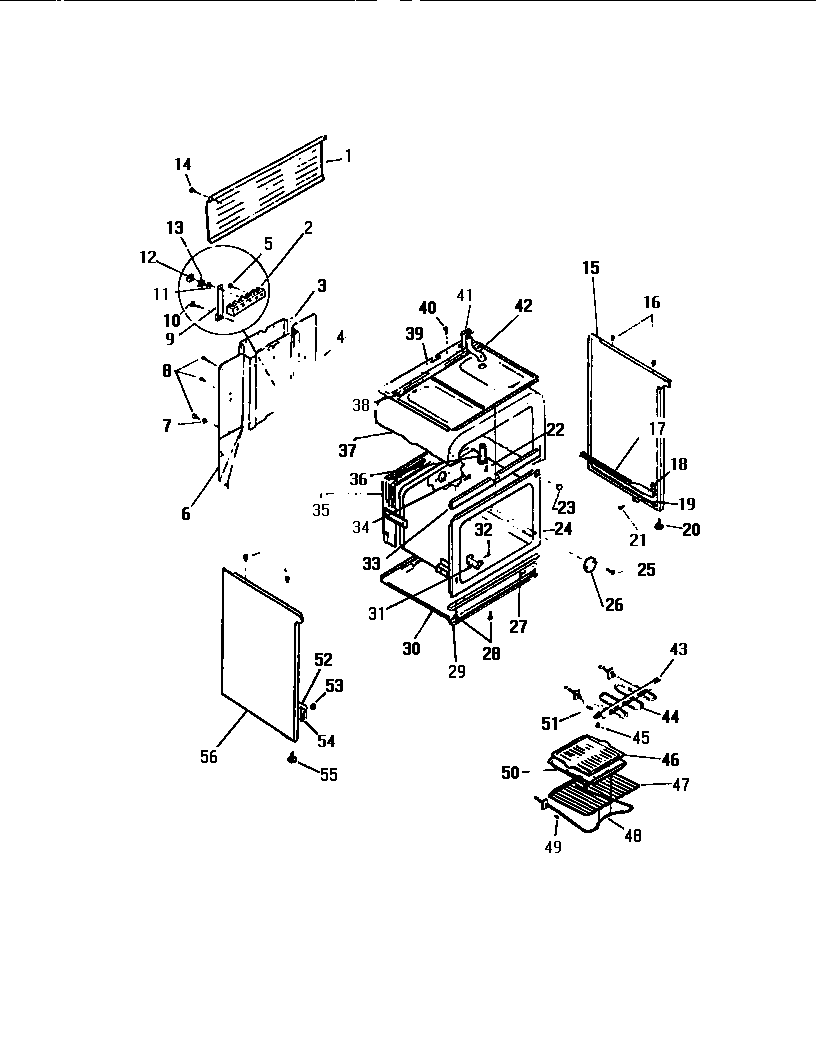

KF350GDH3 05 – BODY, SIDE PANELS

Products

Position	Product
1	COVER-WIRE
2	TERMINAL BLOCK
3	COVER, WIRE
4	BACK
6	GUSSET REAR, LH
7	WCI Q410505
9	STRAP-GROUND
11	WASHER (6)
12	WCI Q401002
13	WCI Q500411
16	WCI K510690
17	RAIL, DWR., RH
20	LEG
21	SCREW
22	SCREW
23	PLUG-BUTTON 3/4``
24	WCI K1325537
26	WCI K1325624
27	SCREW
29	CHANNEL, OV. SUPT.
30	PANEL, BTM
31	BRACKET THERM. BULB
33	CHANNEL, OV SUPT.
35	INSULATION, BACK
36	WCI K5053701
37	INSULATION, WRAP
38	WCI K5303702
39	WCI K5025704
41	WCI K5130701
42	WCI K5130601
43	HANGER
44	5303051516 Frigidaire Broil Element
46	WCI K1317972
47	RACK (2)
48	5303051519 Frigidaire Oven 2600W Bake Element
50	WCI K1317973
51	08002868 Frigidaire 0 Screw Assembly
52	RAIL, DWR, LH
53	GUIDE
54	SPACER, RAIL
55	WCI K1322906
