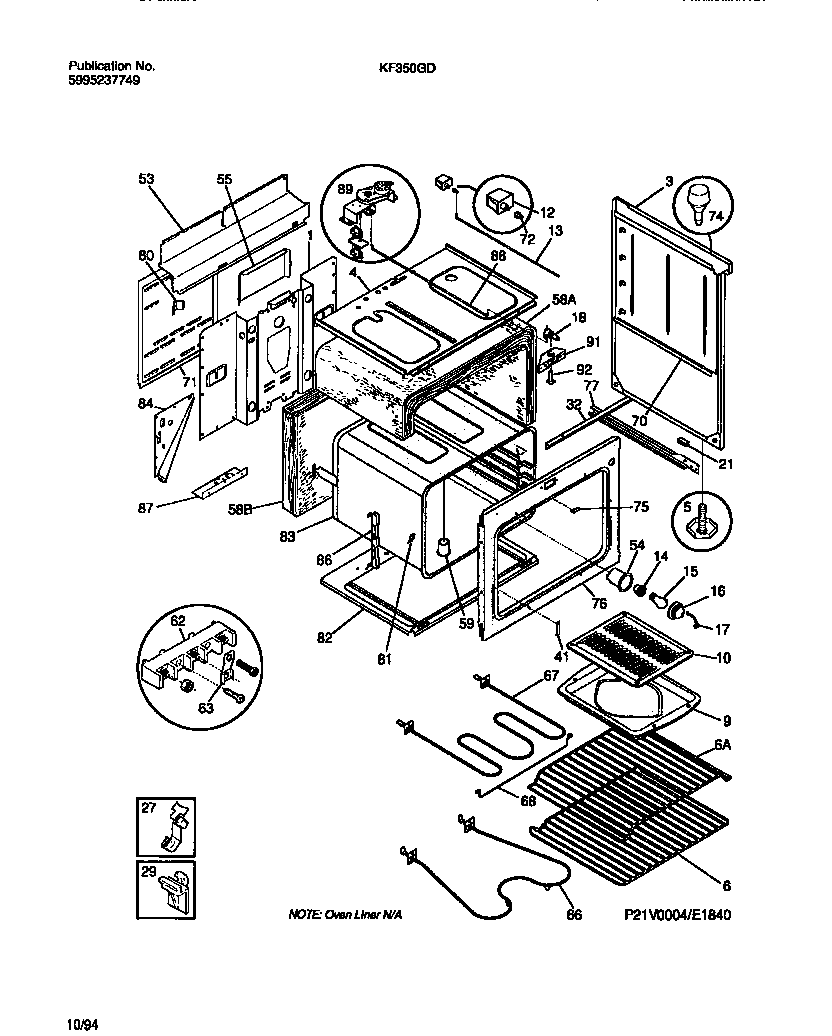

KF350GDH8 03 – BODY

Products

PositionProduct
1PANEL-BACK
3SIDE PANEL-RH WHEAT
3AWCI 08012536
4PANEL – SUBTOP
5AANTI-TIP KIT, (NON-ILLUSTRATED)
5SCREW-LEVELING (4)
6ARACK-OFFSET
6316067902 Frigidaire Oven Rack
9WCI 5303292688
10WCI 3205234
12SWITCH, DOOR
13WCI 08007445
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
165304524341 Frigidaire Lens
17RETAINER-LENS
18LATCH-DOOR
21SPACER, DRAWER RAIL (2)
275303284616 Frigidaire Range Bulb Clip Thermostat
29GUIDE-DRAWER FRNT (2)
32WCI 5303207391
41WCI 3019063
53WCI 3206095
54WCI 5303271606
55WCI 3051634
58AINSULATION, OVEN WRAP
58BINSULATION
59TUBE-OVEN VENT
62A316205500 Frigidaire Oven Nut
625304409888 Frigidaire Oven Terminal Block with Hardware
63PLATE=GROUND STRAP
665303051516 Frigidaire Broil Element
675303051519 Frigidaire Oven 2600W Bake Element
68WCI 3205756
70RETAINER, INSULATION (2)
71WIRE, COVER
72WCI 08007444
74BUMPER, COOKTOP (4)
75WCI 3202082
76FRONT – OVEN
77ARAIL, DRAWER LH
77WCI 5308015746
80WCI 3016281
81WCI 3201632
82WCI 3206275
83OVEN LINER
83APLUG BUTTON (NON-ILLUSTRATED)
84AWCI 3017481
84WCI 3017482
86WCI 3201631
87WCI 3203574
88WCI 3051649
89LATCH, MOTOR
91HOUSING-DOOR LATCH
92AXLE – HINGE (2)
