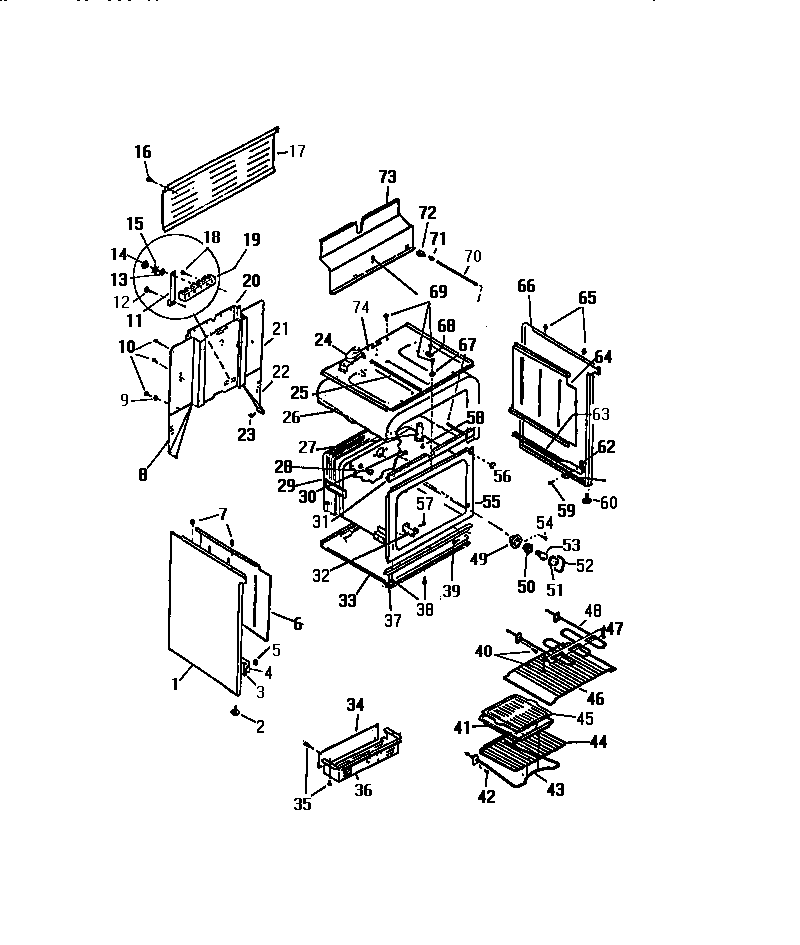

KF350GDV1 06 – CAVITY & SIDE PANEL

Products

Position	Product
1	WCI K5024608
4	RAIL, DWR, LH
6	RETAINER-INSUL (2)
8	WCI K1325114
9	WCI Q410505
11	STRAP-GROUND
13	WASHER (6)
14	WCI Q401002
15	WCI Q500411
17	COVER-WIRE
19	TERMINAL BLOCK
20	WCI K1315110
21	WCI K5137902
22	WCI K1325113
25	ROD
26	WCI K1311331
27	VENT TUBE
28	WCI KGM142017
29	INSULATION-OVEN BACK
31	CHANNEL, OVEN SUPPORT
32	BRACKET THERM. BULB
33	WCI K1317644
34	WCI K1303601
36	WCI K1315121
37	CHANNEL, OV. SUPT.
39	SCREW
41	WCI K1317973
43	5303051519 Frigidaire Oven 2600W Bake Element
44	RACK (2)
45	WCI K1317972
46	WCI K5133501
47	HANGER
48	5303051516 Frigidaire Broil Element
49	CUP, OVEN LT
50	316116400 Frigidaire Oven Light Socket
51	5304524341 Frigidaire Lens
52	RETAINING WIRE
53	WCI Q63749
55	WCI K1325537
56	PLUG-BUTTON 3/4``
57	08002868 Frigidaire 0 Screw Assembly
58	SCREW
59	SCREW
60	LEG
61	GUIDE
62	SPACER, RAIL
63	RAIL, DWR., RH
64	WCI K1325386
65	BUMPER
66	WCI K5024607
67	WASHER, PADDED
68	RETAINER
70	PUSH ROD
71	WCI K1322682
72	SWITCH-DOOR
73	WCI K5029503
74	WCI K5025802
