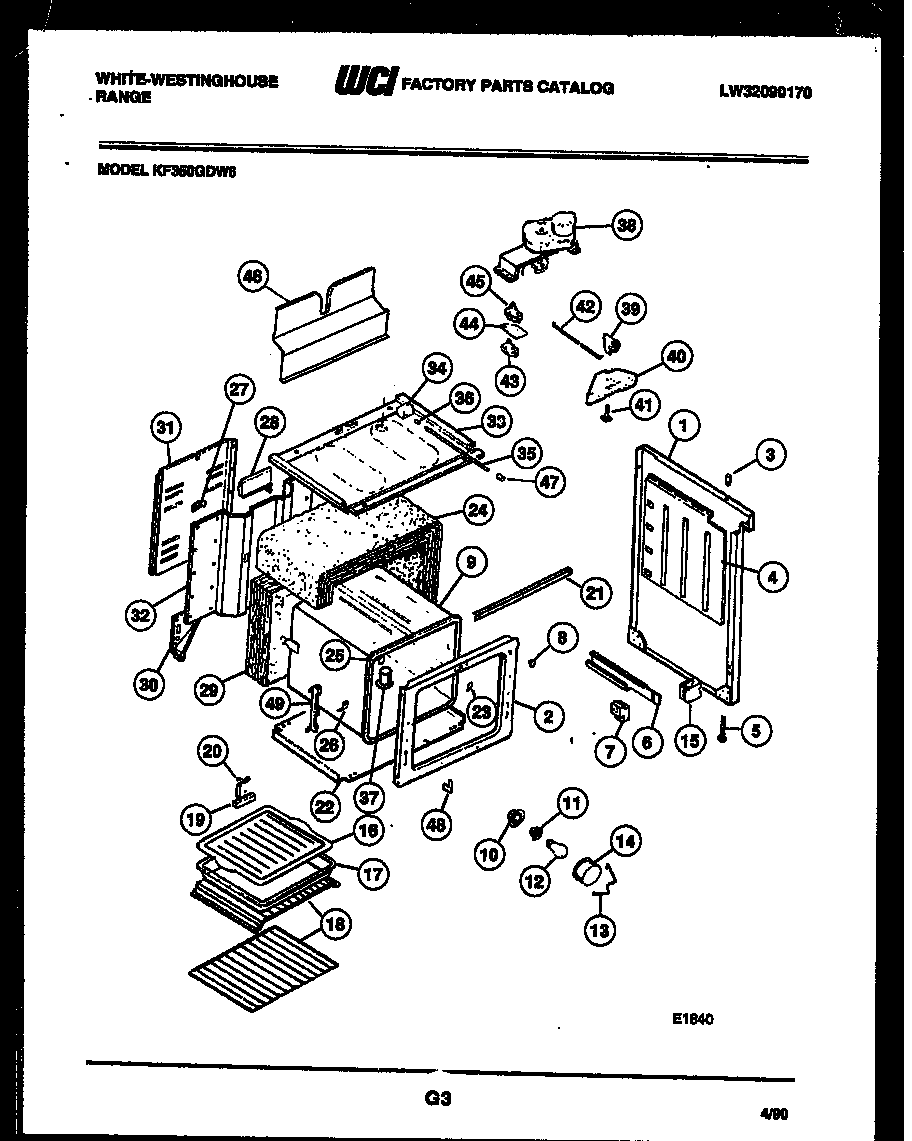

KF350GDV6 06 – BODY PARTSadmin2025-04-26T10:05:11+00:00KF350GDV6 06 – BODY PARTS
Products
| Position | Product |
|---|
| 1 | WCI 08012533 |
| 1 | WCI 08012534 |
| 2 | WCI 5303207390 |
| 3 | BUMPER, COOKTOP (4) |
| 4 | RETAINER, INSULATION (2) |
| 5 | LEG, LEVELLER (4) |
| 6 | WCI 5308015746 |
| 6 | RAIL, DRAWER LH |
| 7 | GUIDE-DRAWER FRNT (2) |
| 8 | BUTTON-PLUG |
| 9 | BODY-OVEN |
| 10 | WCI 3051511 |
| 11 | 316116400 Frigidaire Oven Light Socket |
| 12 | 316538904 Frigidaire Oven Lamp Light |
| 13 | RETAINER-LENS |
| 14 | 5304524341 Frigidaire Lens |
| 15 | SPACER, DRAWER RAIL (2) |
| 16 | WCI 3204234 |
| 17 | WCI 3205539 |
| 18 | 316067902 Frigidaire Oven Rack |
| 18 | RACK-OFFSET |
| 19 | 5304409888 Frigidaire Oven Terminal Block with Hardware |
| 20 | STRAP-GROUND |
| 21 | WCI 5303207391 |
| 22 | WCI 3206275 |
| 23 | WCI 3202082 |
| 25 | PLUG BUTTON (NON-ILLUSTRATED) |
| 26 | WCI 3201632 |
| 27 | WCI 3016281 |
| 28 | WCI 3051634 |
| 29 | INSULATION |
| 30 | WCI 3017481 |
| 30 | WCI 3017482 |
| 31 | WIRE, COVER |
| 32 | PANEL-BACK |
| 33 | WCI 08012542 |
| 34 | SWITCH, DOOR |
| 35 | WCI 08007445 |
| 36 | WCI 08007444 |
| 37 | TUBE-OVEN VENT |
| 38 | LATCH, MOTOR |
| 39 | WCI 3202387 |
| 40 | HOUSING-DOOR LATCH |
| 41 | AXLE - HINGE (2) |
| 42 | WCI 3051649 |
| 43 | SWITCH, LOWER |
| 44 | WCI 08003090 |
| 45 | SWITCH-LOWER |
| 46 | WCI 3206095 |
| 47 | WCI 3051251 |
| 48 | WCI 3019063 |
| 48A | ANTI-TIP KIT, (NON-ILLUSTRATED) |
| 48B | WCI 5300009126 |
| 49 | WCI 3201631 |
