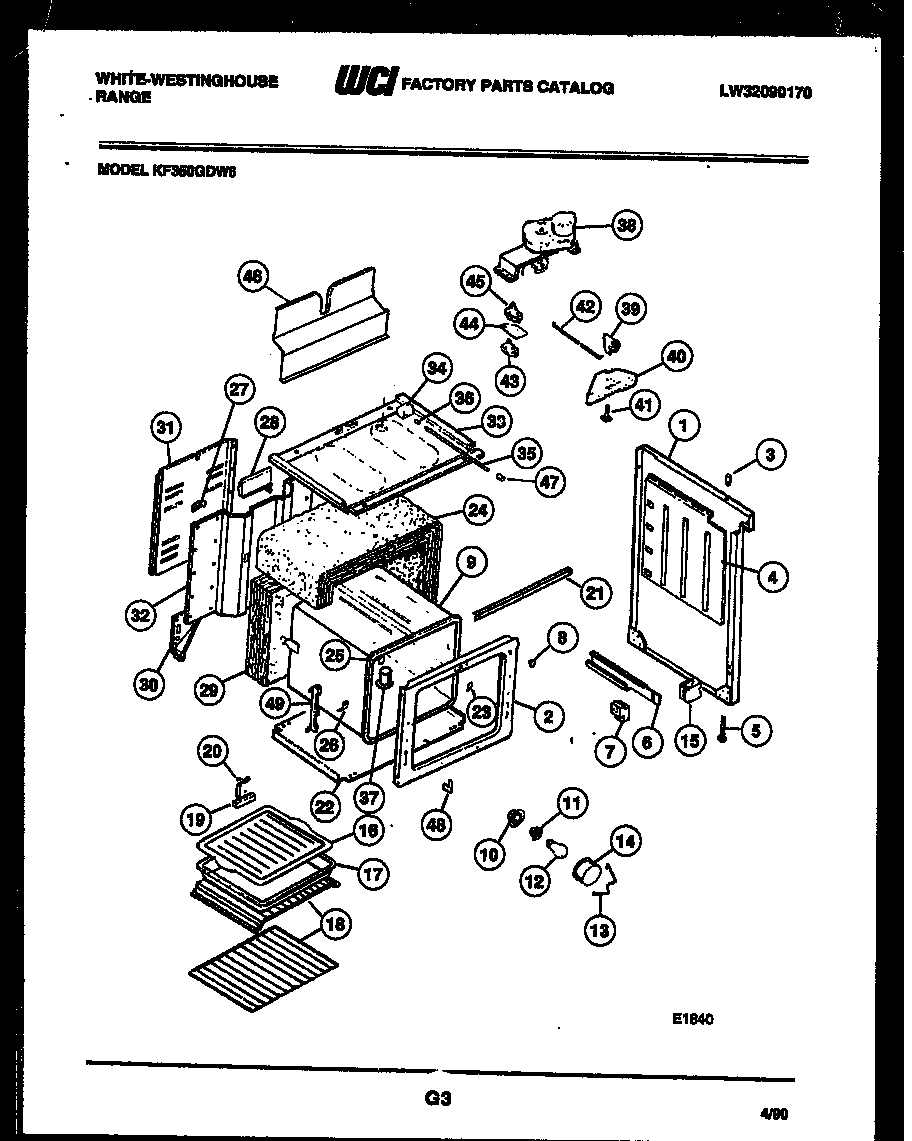

KF350GDW6 06 – BODY PARTS

Products

PositionProduct
1SIDE PANEL, RH WHITE
1SIDE PANEL, LH WHITE
2WCI 5303207390
3BUMPER, COOKTOP (4)
4RETAINER, INSULATION (2)
5LEG, LEVELLER (4)
6WCI 5308015746
6RAIL, DRAWER LH
7GUIDE-DRAWER FRNT (2)
8BUTTON-PLUG
9BODY-OVEN
10WCI 3051511
11316116400 Frigidaire Oven Light Socket
12316538904 Frigidaire Oven Lamp Light
13RETAINER-LENS
145304524341 Frigidaire Lens
15SPACER, DRAWER RAIL (2)
16WCI 3204234
17WCI 3205539
18316067902 Frigidaire Oven Rack
18RACK-OFFSET
195304409888 Frigidaire Oven Terminal Block with Hardware
20STRAP-GROUND
21WCI 5303207391
22WCI 3206275
23WCI 3202082
25PLUG BUTTON (NON-ILLUSTRATED)
26WCI 3201632
27WCI 3016281
28WCI 3051634
29INSULATION
30WCI 3017481
30WCI 3017482
31WIRE, COVER
32PANEL-BACK
33WCI 08012542
34SWITCH, DOOR
35WCI 08007445
36WCI 08007444
37TUBE-OVEN VENT
38LATCH, MOTOR
39WCI 3202387
40HOUSING-DOOR LATCH
41AXLE – HINGE (2)
42WCI 3051649
43SWITCH, LOWER
44WCI 08003090
45SWITCH-LOWER
46WCI 3206095
47WCI 3051251
48WCI 3019063
48AANTI-TIP KIT, (NON-ILLUSTRATED)
48BWCI 5300009126
49WCI 3201631
