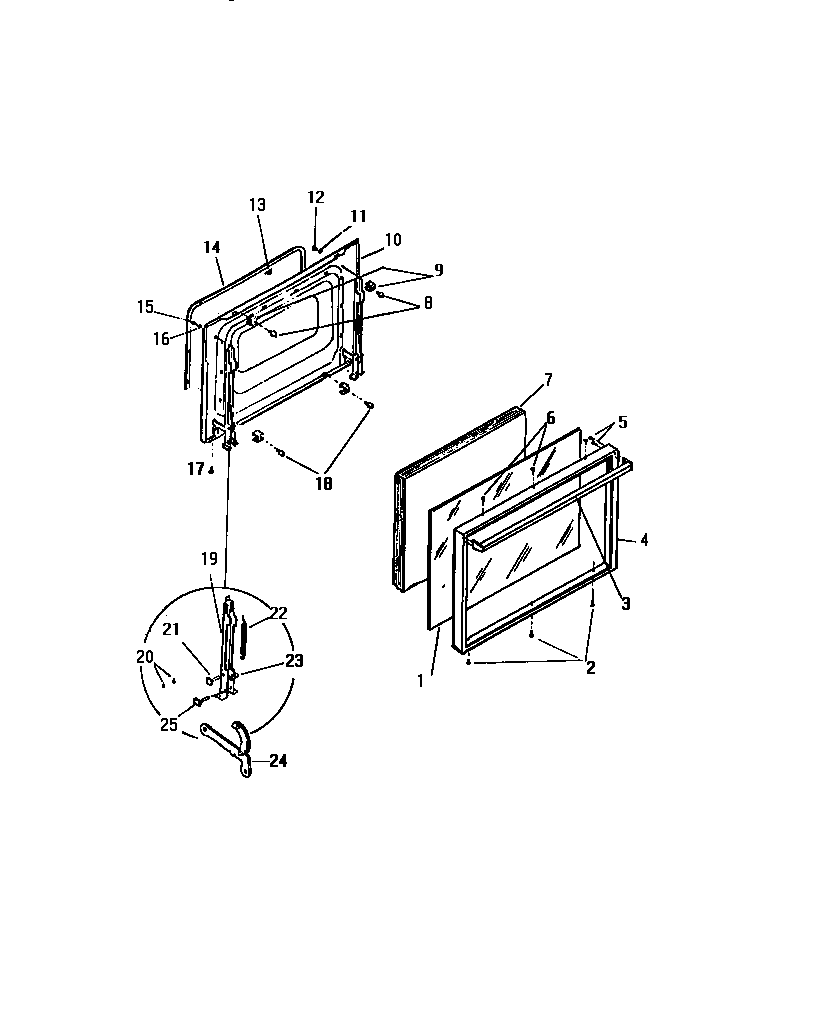

KF400GDF2 04 – DOOR

Written by

KF400GDF2 04 – DOOR

Products

Position	Product
1	GLASS
3	HANDLE ASSY (INCLUDES STANCHION)
4	FRAME
5	SCREW
7	INSULATION
8	BUMPER TOP (2)
9	SPACER (4)
10	WCI K1317740
13	WCI K1309666
14	GASKET (WITH CLIPS)
16	WASHER, PADDED
18	BUMPER BTM
19	CHANNEL ASSY (COMPLETE W/ROLLER & STUD)
20	WCI K1164550
21	RIVET
22	SPRING
23	ROLLER PACKAGE-OVEN DOOR (2)
24	ARM ASSY.
25	AXLE
