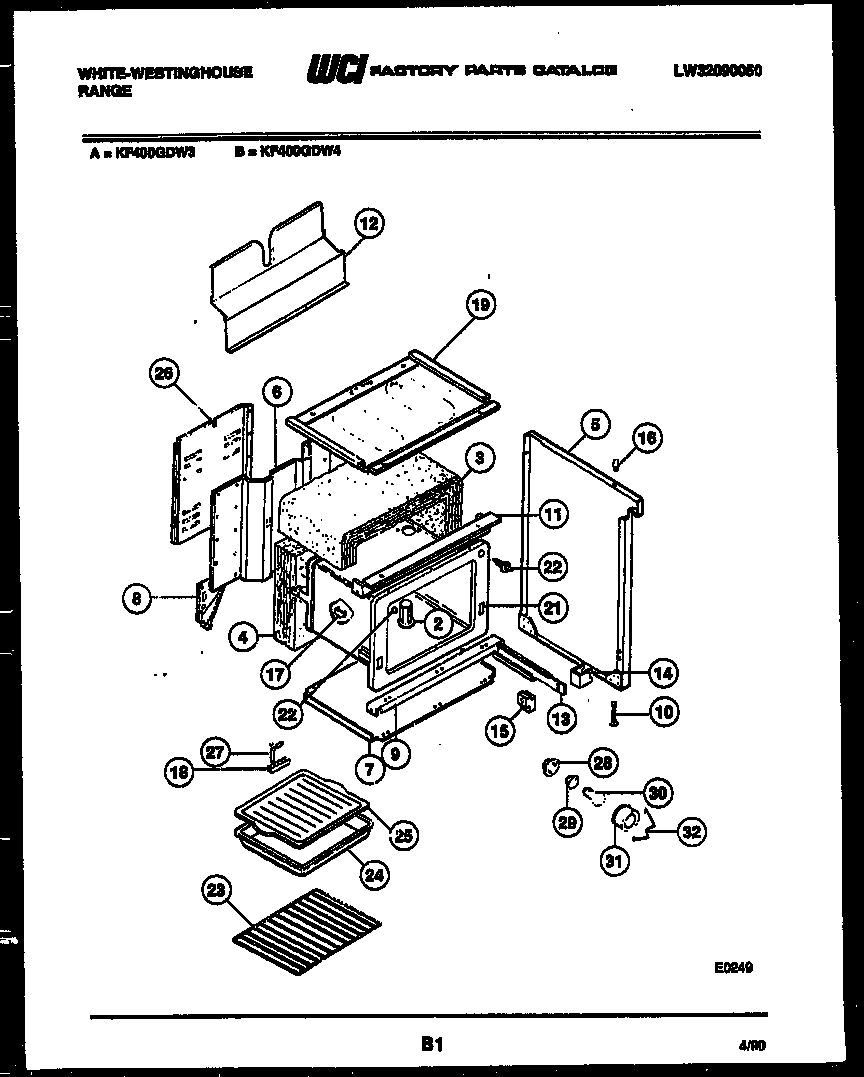

KF400GDH3 06 – BODY PARTS

KF400GDH3 06 – BODY PARTS

Written by

in

KF400GDH3 06 – BODY PARTS

Products

PositionProduct
2WCI 08012541
3INSULATION – OVEN WRAP
4INSULATION
5APANEL-SIDE LH WHEAT
5PANEL-SIDE RH WHEAT
7WCI K005276504
8GUSSET-REAR RH
8AWCI K005285804
9CHANNEL-OVEN SUPT
10SCREW-LEVELING (4)
11WCI 08011072
12WCI K005029503
13WCI 5308015746
13ARAIL, DRAWER LH
14SPACER, DRAWER RAIL (2)
15GUIDE-DRAWER FRNT (2)
16BUMPER, COOKTOP (4)
17BRACKET-THERMO BULB (2)
185304409888 Frigidaire Oven Terminal Block with Hardware
19WCI 08012542
21WCI 3204607
22WCI 5301314211
23316067902 Frigidaire Oven Rack
24WCI 3200723
25WCI 3203164
26WIRE, COVER
27STRAP-GROUND
28WCI 3051511
29316116400 Frigidaire Oven Light Socket
30316538904 Frigidaire Oven Lamp Light
315304524341 Frigidaire Lens
32RETAINER-LENS
