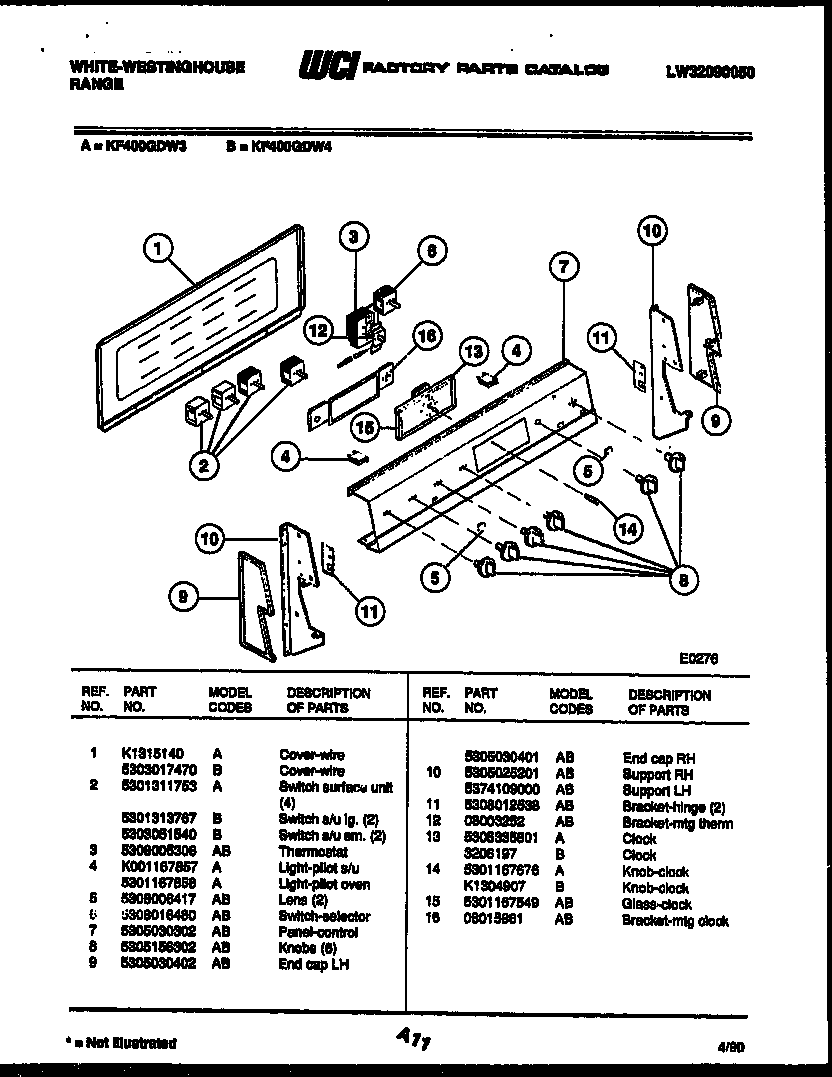

KF400GDH4 02 – CONTROL PANEL

Products

Position	Product
1	COVER, WIRE.
2A	5303935086 Frigidaire Oven Top Burner Switch Kit
3	THERMOSTAT
5	LENS (2)
6	SWITCH-SELECTOR
7	WCI 5305030302
8	KNOBS (6)
9	WCI 5305030402
9A	WCI 5305030401
10A	SUPPORT LH
10	SUPPORT RH
11	BRACKET, HINGE (2)
12	WCI 08003252
13	WCI 3206197
14	WCI K1304907
15	WCI 5301167549
16	BRACKET-MTG CLOCK
