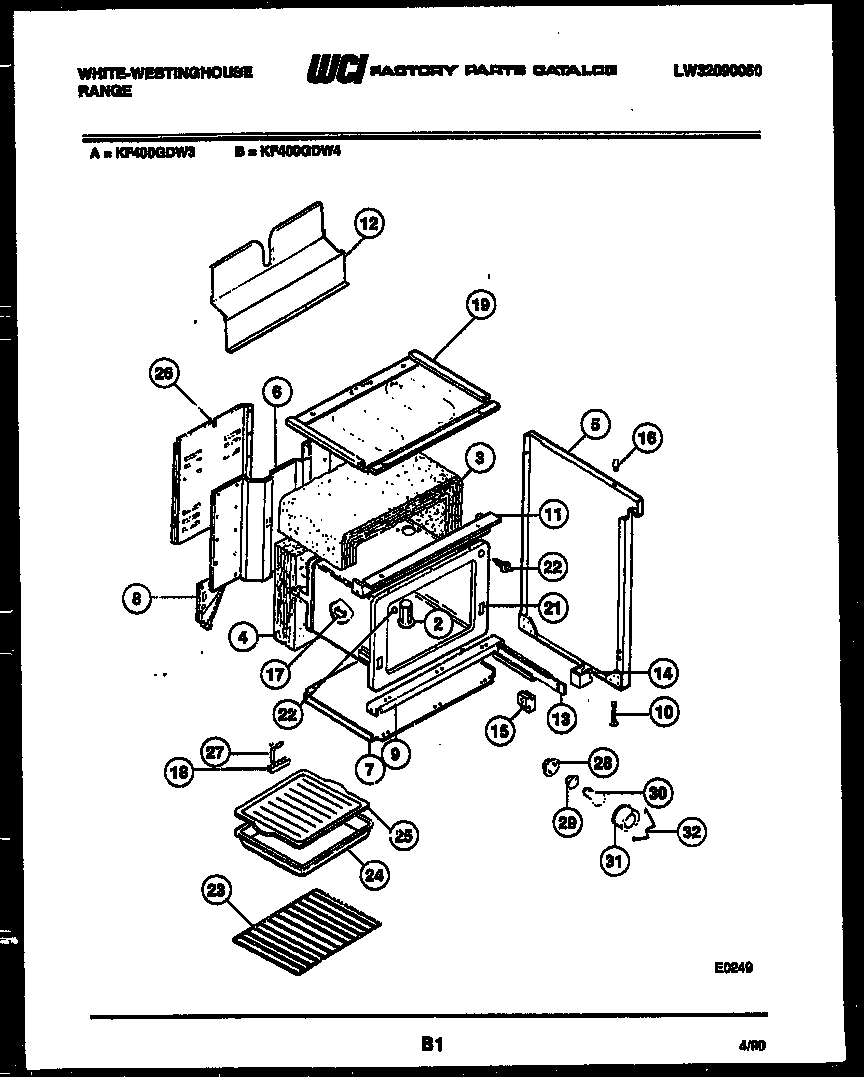

KF400GDV4 06 – BODY PARTS

Products

Position	Product
*70621	ANTI-TIP KIT, (NON-ILLUSTRATED)
2	WCI 08012541
3	INSULATION - OVEN WRAP
4	INSULATION
5	PANEL-END RH AVOC
5A	PANEL-END LH AVOC
6	WCI 3017535
7	PANEL-BOTTOM
8	WCI 3017481
8A	WCI 3017482
9	CHANNEL - OVEN SUPPORT LOWER
10	LEG, LEVELLER (4)
11	CHANNEL-OVEN SUPPORT UPPER
12	WCI 3206095
13	WCI 5308015746
13A	RAIL, DRAWER LH
14	SPACER, DRAWER RAIL (2)
15	GUIDE-DRAWER FRNT (2)
16	BUMPER, COOKTOP (4)
17	BRACKET-THERMO BULB (2)
18	5304409888 Frigidaire Oven Terminal Block with Hardware
19	WCI 08012542
21	WCI 3204607
22	WCI 5301314211
23	316067902 Frigidaire Oven Rack
24	WCI 3206373
25	WCI 3205234
26	WIRE, COVER
27	STRAP-GROUND
28	WCI 3051511
29	316116400 Frigidaire Oven Light Socket
30	316538904 Frigidaire Oven Lamp Light
31	5304524341 Frigidaire Lens
32	RETAINER-LENS
