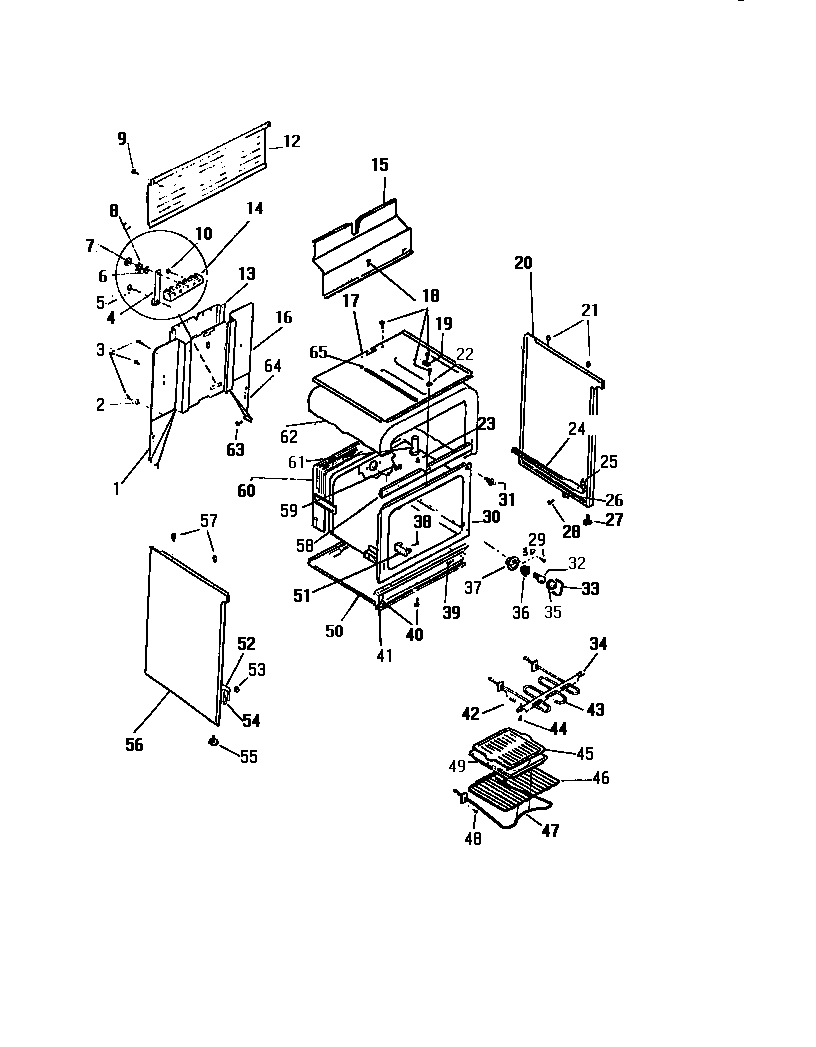

KF400GDW2 05 – BODY, SIDE PANELS

Products

Position	Product
1	WCI K5085804
2	WCI Q410505
4	STRAP-GROUND
6	WASHER (6)
7	WCI Q401002
8	WCI Q500411
12	COVER-WIRE
13	COVER, WIRE
14	TERMINAL BLOCK
15	WCI K5029503
16	BACK
17	WCI K5025802
19	RETAINER
20	WCI K5024601
22	WASHER, PADDED
23	SCREW
24	RAIL, DWR., RH
28	SCREW
30	WCI K1325537
31	WCI K5294301
32	WCI Q63749
33	RETAINING WIRE
34	HANGER
35	5304524341 Frigidaire Lens
36	316116400 Frigidaire Oven Light Socket
37	CUP, OVEN LT
39	SCREW
41	CHANNEL, OV. SUPT.
43	5303051516 Frigidaire Broil Element
44	08002868 Frigidaire 0 Screw Assembly
45	WCI K1317972
46	RACK (2)
47	5303051519 Frigidaire Oven 2600W Bake Element
48	WCI K116447
49	WCI K1317973
50	PANEL, BTM
51	BRACKET THERM. BULB
52	RAIL, DWR, LH
53	GUIDE
54	SPACER, RAIL
55	LEG
56	WCI K5024602
57	BUMPER
58	WCI K1325472
60	INSULATION, BACK
61	VENT TUBE
62	INSULATION, WRAP
64	GUSSET, RH
65	ROD
