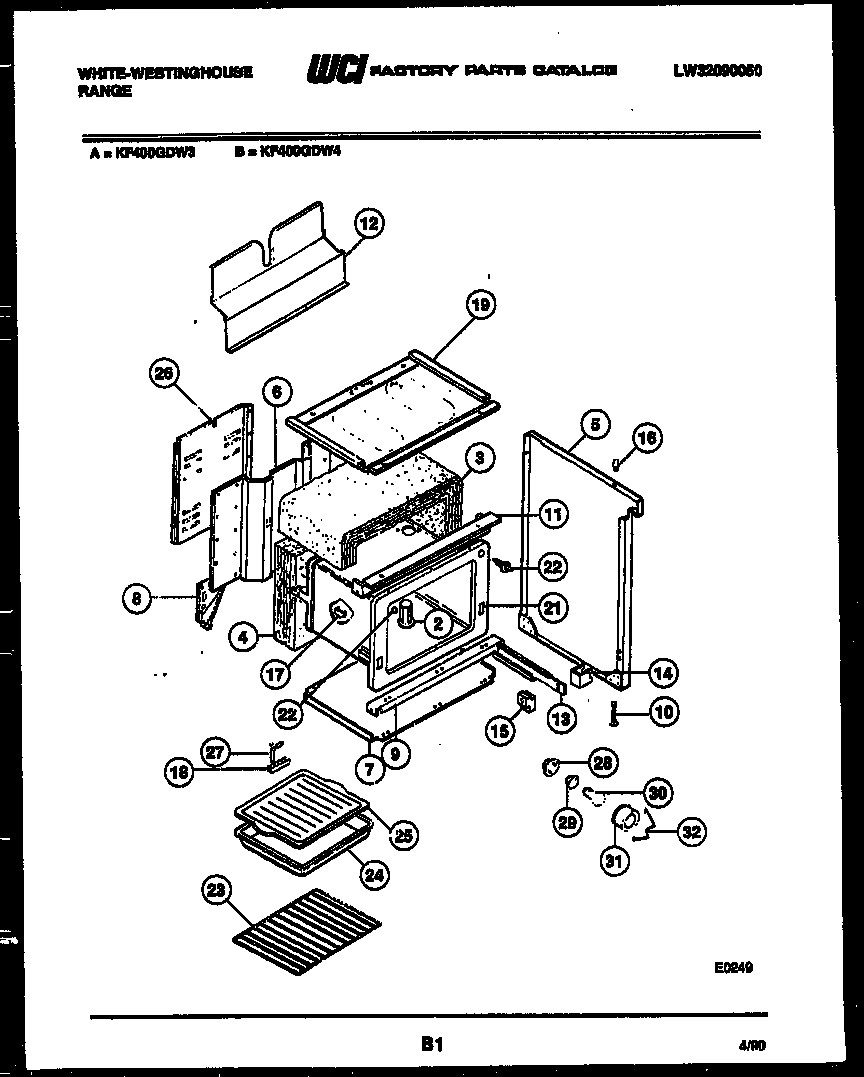

KF400GDW4 06 – BODY PARTS

KF400GDW4 06 – BODY PARTS

Written by

in

KF400GDW4 06 – BODY PARTS

Products

PositionProduct
*70621ANTI-TIP KIT, (NON-ILLUSTRATED)
2WCI 08012541
3INSULATION – OVEN WRAP
4INSULATION
5ASIDE PANEL, LH WHITE
5SIDE PANEL, RH WHITE
6WCI 3017535
7PANEL-BOTTOM
8WCI 3017481
8AWCI 3017482
9CHANNEL – OVEN SUPPORT LOWER
10LEG, LEVELLER (4)
11CHANNEL-OVEN SUPPORT UPPER
12WCI 3206095
13WCI 5308015746
13ARAIL, DRAWER LH
14SPACER, DRAWER RAIL (2)
15GUIDE-DRAWER FRNT (2)
16BUMPER, COOKTOP (4)
17BRACKET-THERMO BULB (2)
185304409888 Frigidaire Oven Terminal Block with Hardware
19WCI 08012542
21WCI 3204607
22WCI 5301314211
23316067902 Frigidaire Oven Rack
24WCI 3206373
25WCI 3205234
26WIRE, COVER
27STRAP-GROUND
28WCI 3051511
29316116400 Frigidaire Oven Light Socket
30316538904 Frigidaire Oven Lamp Light
315304524341 Frigidaire Lens
32RETAINER-LENS
