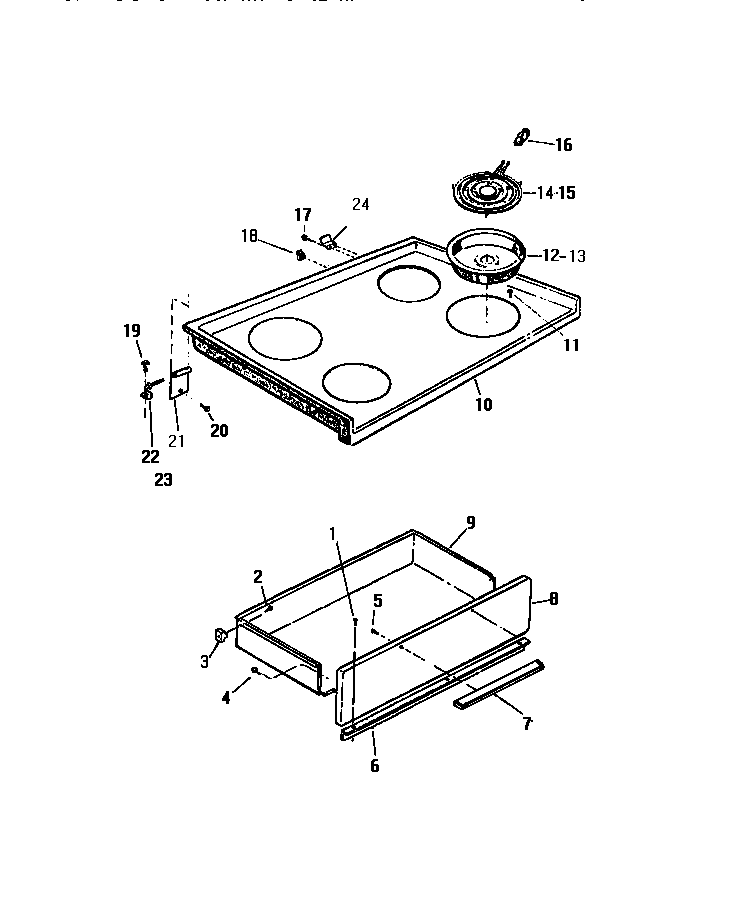

KF404GDD1 03 – TOP, DRAWER

KF404GDD1 03 – TOP, DRAWER

Written by

in

KF404GDD1 03 – TOP, DRAWER

Products

PositionProduct
1131243700 Frigidaire Screw
3WCI K1315217
5SCREW
6WCI K1312503
7HANDLE, CHROME
8PANEL, ALMOND
9WCI K1315211
10COOKTOP, ALMOND
115308014215 Frigidaire Oven Screw
12316048414 Frigidaire Oven Range Chrome 6" Drip Bowl
13316048413 Frigidaire Oven Range Chrome 8" Drip Bow
14318372211 Frigidaire Oven 6" Electric Range Burner Kit
15316442301 Frigidaire Oven 8 Coil Element 2600W
165303935058 Frigidaire Oven Burner Receptacle Kit
18WCI K1315541
2008002868 Frigidaire 0 Screw Assembly
21WCI K1315632
22WCI K1315631
23WCI K1315630
24WCI K1307880
