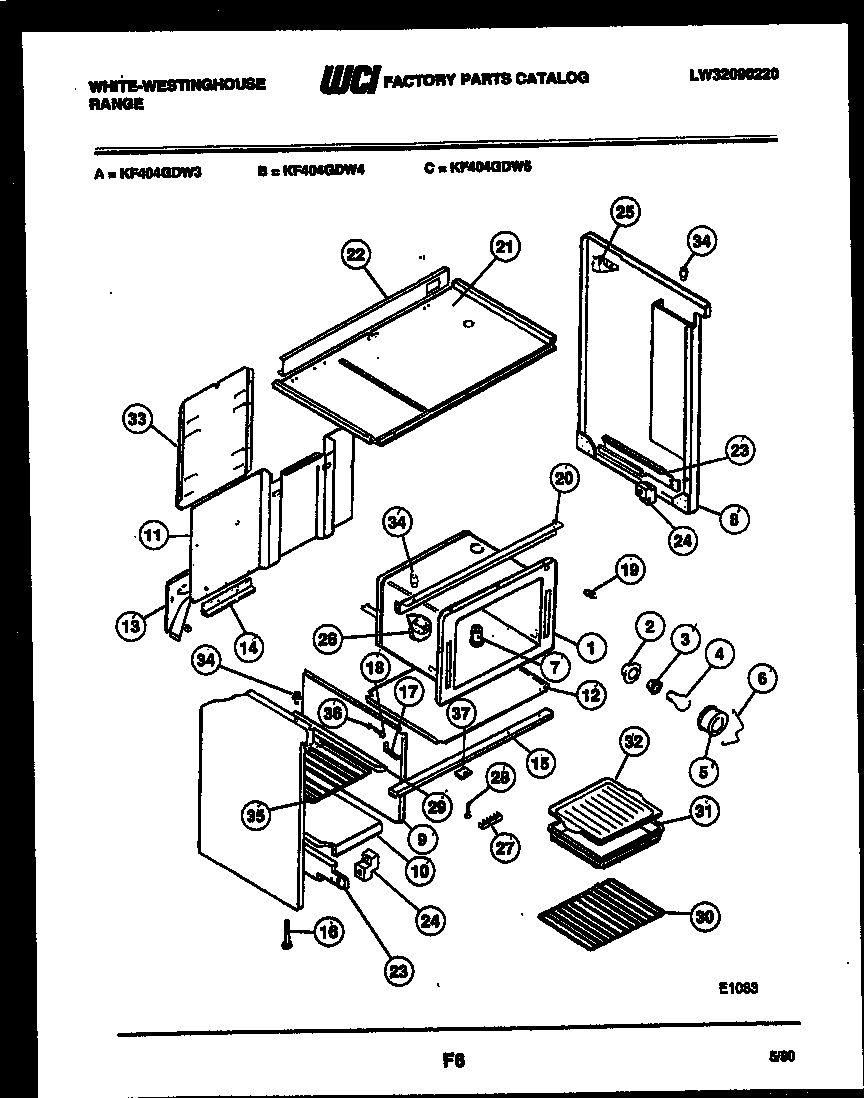

KF404GDD3 02 – BODY PARTS

Products

Position	Product
1	WCI 5303206912
2	WCI 3051511
3	316116400 Frigidaire Oven Light Socket
4	316538904 Frigidaire Oven Lamp Light
5	5304524341 Frigidaire Lens
6A	INSULATION – OVEN WRAP
6	RETAINER-LENS
7A	INSULATION
7	WCI K1311218
8	PANEL-SIDE RH ALMD
8A	SIDE PANEL LH-ALMD
9	WCI K5157802
10	WCI K1315129
11	WCI 08015772
12	PNL – BOTTOM
13A	GUSSET – REAR (2)
14	SUPPORT
15	Channel,oven support ,front
16	SCREW-LEVELING (4)
17	WCI K5138301
18	WCI 08011945
19	WCI 5301314211
20	WCI K5048203
21	WCI 08011947
22	SHIELD, WIRING
23A	GLIDE – DWR LH
23	GLIDE – DWR RH
24	GUIDE-DRAWER FRNT (2)
25	GUSSET – BKGRD (2)
26	BRACKET-THERMO BULB (2)
27	5304409888 Frigidaire Oven Terminal Block with Hardware
28	STRAP-GROUND
29	WCI 08011959
30	316067902 Frigidaire Oven Rack
31	5304442087 Frigidaire Range Wall Oven Broil Pan and Insert
32	WCI 3203164
33	WIRE, COVER
34	BUMPER, COOKTOP (4)
35	RACK – COMPLETE
36	WCI KGM110924
