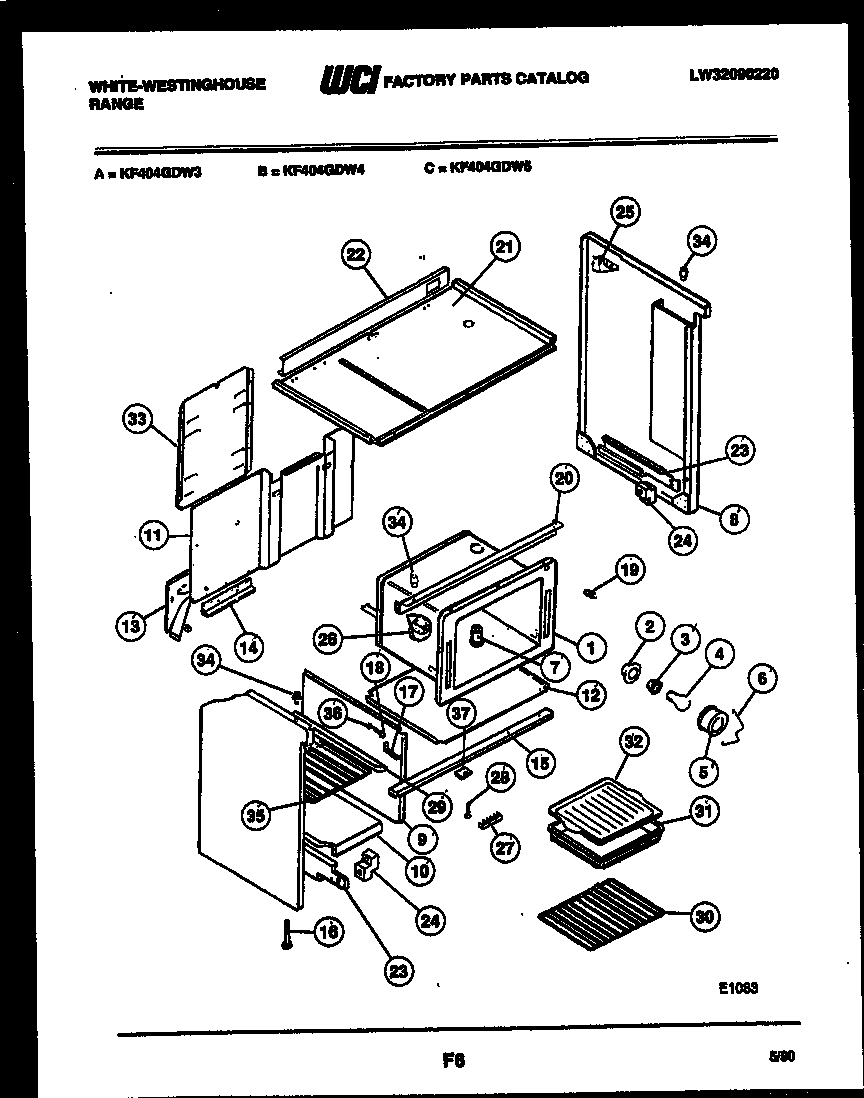

KF404GDD5 02 – BODY PARTS

Products

Position	Product
1	WCI 3204608
2	HOUSING – LIGHT
3	316116400 Frigidaire Oven Light Socket
4	316538904 Frigidaire Oven Lamp Light
5	5304524341 Frigidaire Lens
6	RETAINER-LENS
6A	INSULATION – OVEN WRAP
7A	INSULATION
7	WCI K1311218
8A	SIDE PANEL LH-ALMD
8	PANEL-SIDE RH ALMD
9	WCI K5157802
10	WCI K1315129
11	WCI 3204827
12	WCI 3203573
13	WCI 3204823
13	WCI 3204822
14	SUPPORT
15	Channel,oven support ,front
16	SCREW-LEVELING (4)
19	WCI 5301314211
20	WCI 5303209334
21	WCI 08011947
22	WCI 5303209319
25	GUSSET – BKGRD (2)
26	BRACKET-THERMO BULB (2)
27	5304409888 Frigidaire Oven Terminal Block with Hardware
28	STRAP-GROUND
29	WCI 08011959
30	316067902 Frigidaire Oven Rack
31	PAN-BROILER
32	WCI 5303131356
33	PANEL – WIRE COVER
33A	WCI 3934058
34	BUMPER, COOKTOP (4)
35	RACK – COMPLETE
37	WCI 3204318
