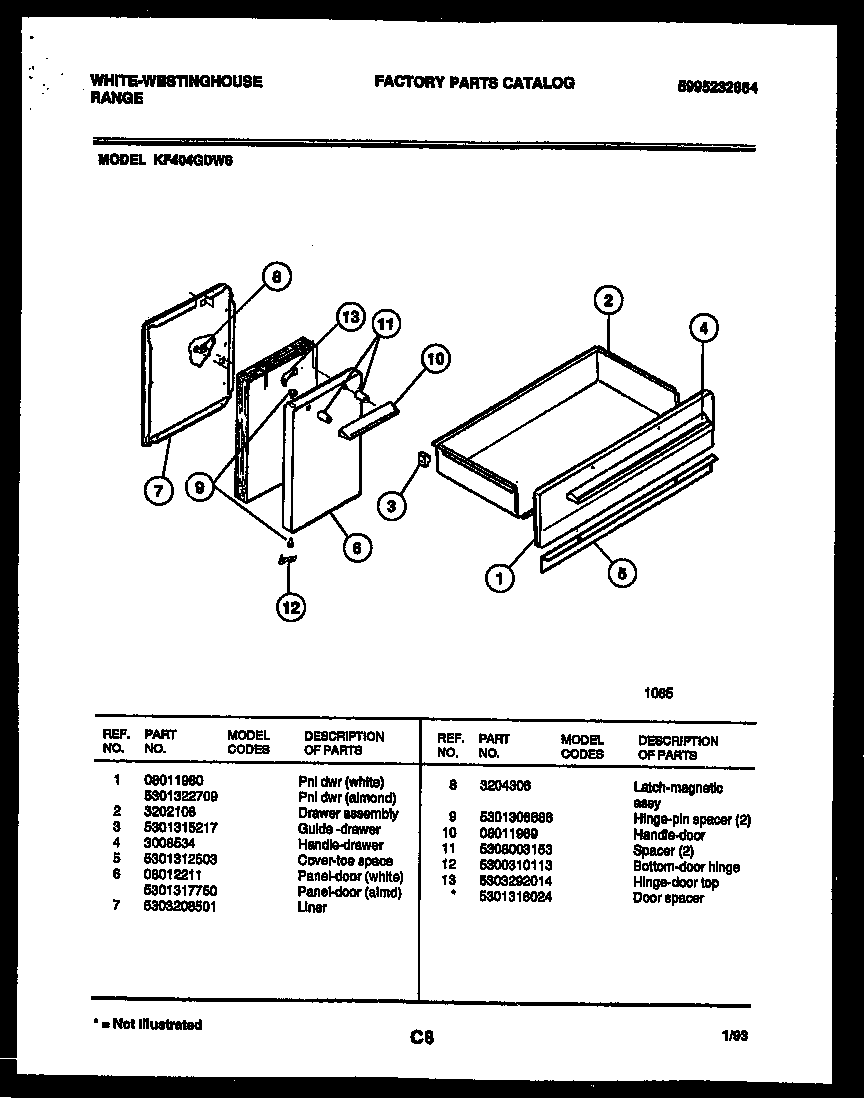

KF404GDD6 04 – DOOR AND DRAWER PARTS

KF404GDD6 04 – DOOR AND DRAWER PARTS

Written by

in

KF404GDD6 04 – DOOR AND DRAWER PARTS

Products

Position	Product
*72552	SPACER
1	PANEL – DRAWER (ALMD)
2	DRAWER-UTILITY
3	GUIDE (2)
4	WCI 3008534
5	COVER-TOE SPACE
6	PANEL COMPLETE (ALMOND)
7	LINER
8	LATCH-MAGNETIC
9	SPACER-HINGE PIN (2)
10	HANDLE
11	SPACER (2)
12	WCI 5300310113
13	HINGE-BOTTOM
