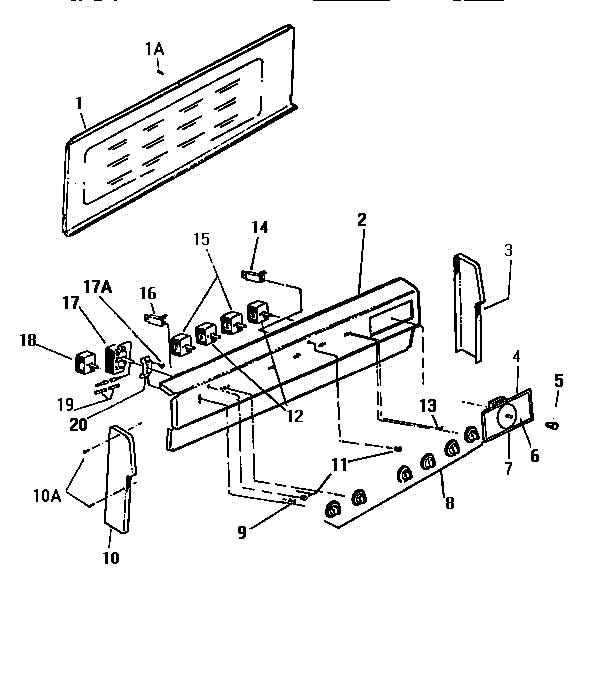

KF404GDH2 02 – BACKGUARD

Products

Position	Product
1 A	08002868 Frigidaire 0 Screw Assembly
1	WCI K1315123
2	WCI K5068502
3	WCI K1311947
4	BEZEL
5	KNOB, TIMER
6	GLASS
7	WCI K5335801
8	KNOB (6)
9	SCREW – THERMO BRACKET 6-32 X 3/16 (2)
10A	SCREW, END CAP MOUNTING (4)
10	WCI K1311948
11	LENS
13	SCREW
14	LIGHT,SIGNAL (SURFACE UNIT 125V)
15	5303935086 Frigidaire Oven Top Burner Switch Kit
16	LIGHT SIGNAL (OVEN 250V)
17	THERMOSTAT
17A	SCREW
18	SWITCH SELEC.
19	WCI K1305350
20	BRACKET
