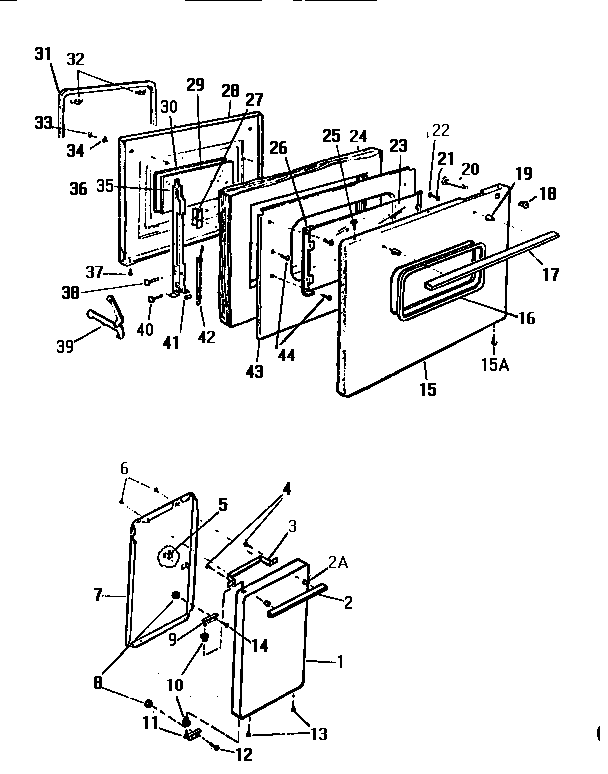

KF404GDH2 04 – DOOR

Products

Position	Product
1	PANEL, COMPARTMENT DOOR, WHEAT
2	WCI K5034101
3	WCI K1318024
5	WCI K1310826
7	WCI K5048001
8	5303013272 Frigidaire Oven Nut
9	WCI Q310114
10	WCI K1306686
11	WCI Q310113
15	DOORO PANEL, ALMOND
16	MOULDING OUTER GLASS
17	HANDLE – DRAWER (CHROME)
18	WCI K1310071
19	SPACER (2)
20	WCI K1313983
21	WCI Q410505
22	WCI K5104201
23	WCI K1325512
24	WCI K1325629
26	WCI K1325270
27	WCI K1325510
28	WCI K1325786
29	GLASS – INNER DOOR
30	WCI K1325686
31	GASKET (WITH CLIPS)
32	WCI K1309666
34	WASHER, PADDED
35	WCI K1311515
36	CHANNEL ASSY (COMPLETE W/ROLLER & STUD)
38	RIVET
39	ARM ASSY.
40	AXLE
41	ROLLER PACKAGE-OVEN DOOR (2)
42	SPRING
43	WCI K1325729
44	WCI K1164550
