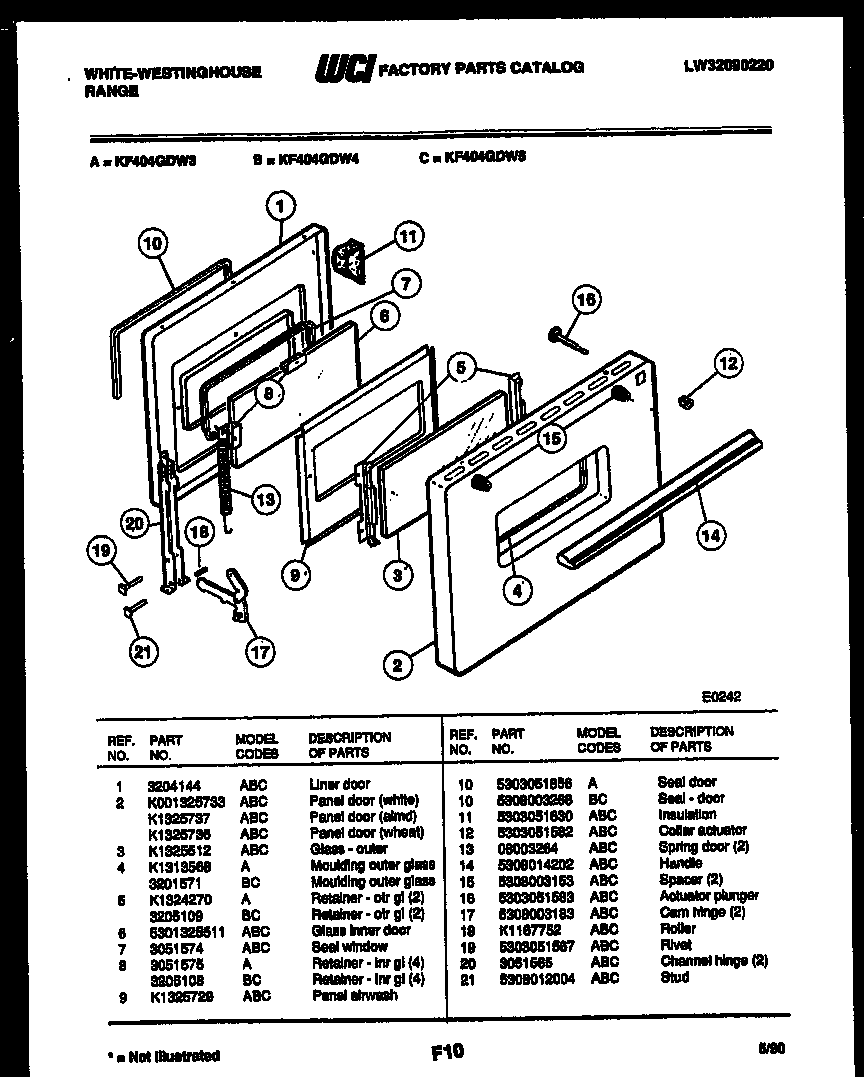

KF404GDH3 05 – DOOR PARTS

KF404GDH3 05 – DOOR PARTS

Written by

in

KF404GDH3 05 – DOOR PARTS

Products

Position	Product
1	WCI 3204144
2	DOORO PANEL, ALMOND
3	WCI K1325512
4	MOULDING OUTER GLASS
5	WCI K1324270
6	GLASS INNER DOOR
7	SEAL WINDOW
8	RETAINER – GLASS (4)
9	WCI K1325729
10	WIRE, COVER
11	INSULATION
12	COLLAR ACTUATOR
13	WCI 08003264
14	WCI 5308014202
15	SPACER (2)
16	ACTUATOR-PLUNGER
17	DOOR HINGE ARM
18	ROLLER PACKAGE-OVEN DOOR (2)
19	WCI 5303051567
20	CHANNEL HINGE (2)
21	AXLE – HINGE (2)
