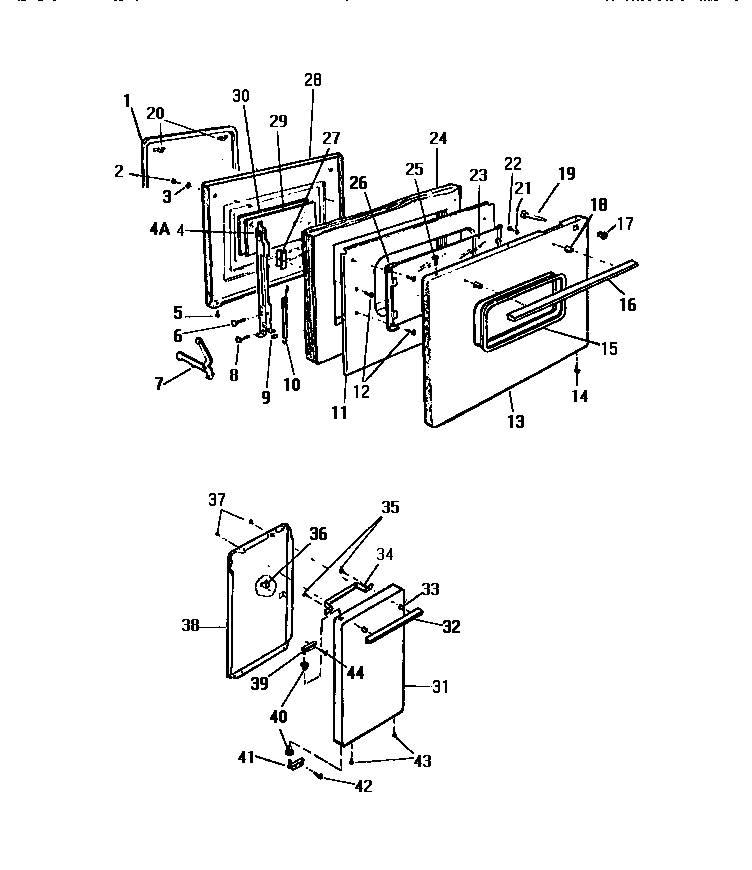

| 1 | GASKET (WITH CLIPS) |
| 3 | WASHER, PADDED |
| 4 | WCI K1311515 |
| 4A | CHANNEL ASSY (COMPLETE W/ROLLER & STUD) |
| 6 | RIVET |
| 7 | ARM ASSY. |
| 8 | AXLE |
| 9 | ROLLER PACKAGE-OVEN DOOR (2) |
| 10 | SPRING (2) |
| 11 | WCI K1325729 |
| 13 | WCI K1325733 |
| 15 | MOULDING OUTER GLASS |
| 16 | HANDLE - DRAWER (CHROME) |
| 17 | WCI K1310071 |
| 19 | WCI K1313963 |
| 20 | WCI K1309666 |
| 21 | WCI Q41505 |
| 23 | WCI K1325512 |
| 24 | WCI K1325629 |
| 26 | WCI K1325270 |
| 27 | WCI K1325510 |
| 28 | WCI K1325786 |
| 29 | GLASS - INNER DOOR |
| 30 | WCI K1325686 |
| 31 | WCI K1317746 |
| 32 | WCI K5034101 |
| 33 | SPACER (2) |
| 34 | WCI K1318024 |
| 35 | WCI K5104201 |
| 36 | WCI K131026 |
| 38 | WCI K5048001 |
| 39 | WCI K5044902 |
| 40 | WCI K1306686 |
| 41 | WCI K5044901 |
| 43 | WCI K1164550 |
| 44 | SCREW, END CAP MOUNTING (4) |
