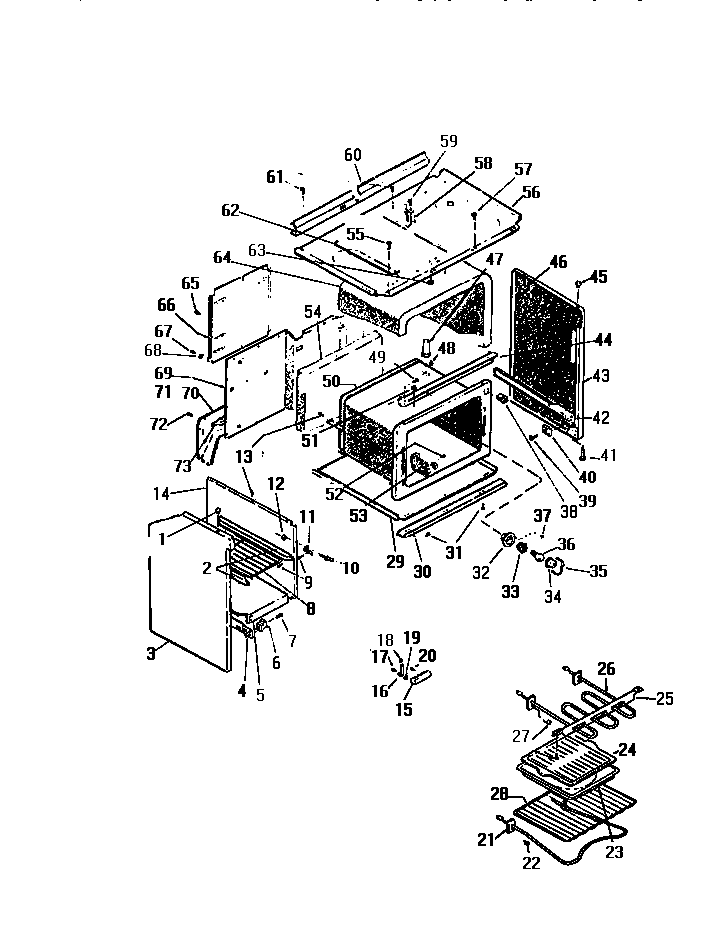

KF404GDW1 05 – BODY, SIDE PANELSadmin2025-04-26T10:03:17+00:00KF404GDW1 05 – BODY, SIDE PANELS
Products
| Position | Product |
|---|
| 2 | WCI K1315199 |
| 3 | WCI K5024602 |
| 4 | RAIL, DWR, LH |
| 5 | WCI K1315129 |
| 8 | WCI K1311283 |
| 10 | WCI K1324043 |
| 11 | WCI K5138301 |
| 12 | WCI KGM271166 |
| 14 | WCI K5157802 |
| 15 | TERMINAL BLOCK |
| 16 | STRAP-GROUND |
| 18 | WCI Q401002 |
| 19 | WASHER (6) |
| 20 | WCI K1154479 |
| 21 | 5303051519 Frigidaire Oven 2600W Bake Element |
| 23 | WCI K1317973 |
| 24 | WCI K1317972 |
| 25 | HANGER |
| 26 | 5303051516 Frigidaire Broil Element |
| 28 | RACK (2) |
| 29 | WCI K1315107 |
| 30 | WCI K1315113 |
| 32 | CUP, OVEN LT |
| 33 | 316116400 Frigidaire Oven Light Socket |
| 34 | 5304524341 Frigidaire Lens |
| 35 | RETAINING WIRE |
| 36 | WCI Q63749 |
| 38 | SWITCH, OVEN LIGHT |
| 40 | GUIDE |
| 41 | LEG |
| 42 | RAIL, DWR., RH |
| 43 | WCI K5024601 |
| 44 | WCI K5048201 |
| 45 | BUMPER |
| 46 | GUSSET, BACKGRD (2) |
| 47 | WCI K1311218 |
| 48 | SCREW |
| 50 | WCI K5024704 |
| 51 | 5303013272 Frigidaire Oven Nut |
| 52 | 08002868 Frigidaire 0 Screw Assembly |
| 53 | BRACKET THERM. BULB |
| 54 | INSULATION, BACK |
| 55 | SCREW |
| 56 | WCI K1323564 |
| 58 | WCI K1313861 |
| 59 | WCI K1300968 |
| 60 | WCI K1315115 |
| 62 | ROD |
| 63 | WASHER, PADDED |
| 64 | INSULATION, WRAP |
| 66 | WCI K1315110 |
| 67 | SCREW |
| 68 | WCI Q410505 |
| 69 | BACK, RANGE |
| 70 | WCI K1325114 |
| 71 | WCI K1325113 |
| 73 | WCI K1307085 |
