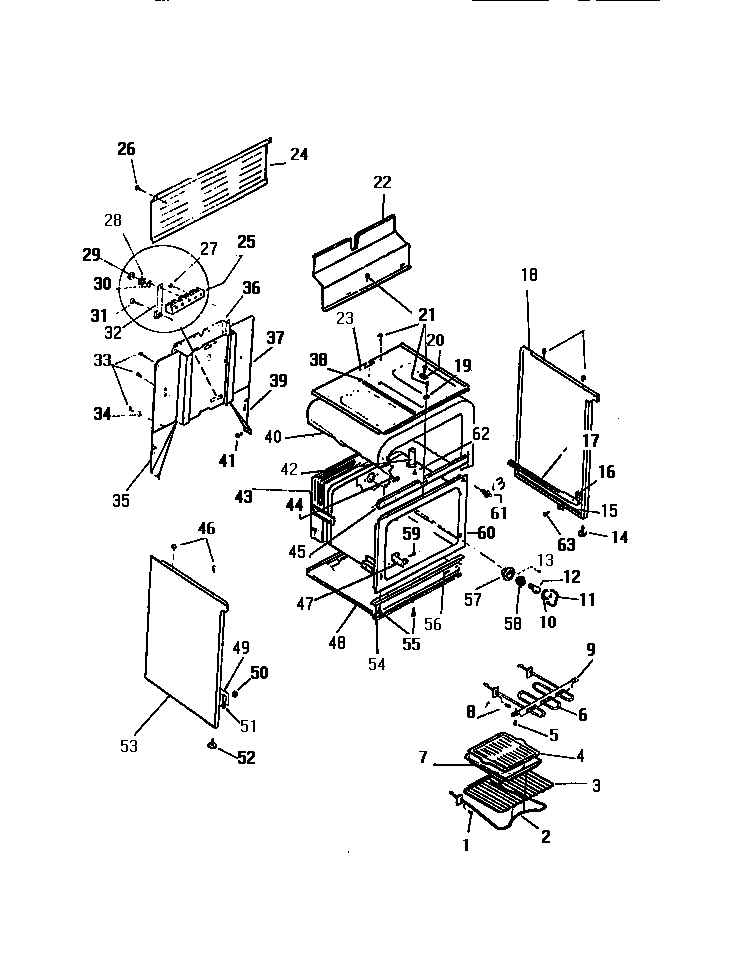

KF420GDD2 05 – BODY, SIDE PANELS

Products

Position	Product
2	5303051519 Frigidaire Oven 2600W Bake Element
3	RACK (2)
4	WCI K1317972
6	5303051516 Frigidaire Broil Element
7	WCI K1317973
9	HANGER
10	5304524341 Frigidaire Lens
11	RETAINING WIRE
12	WCI Q63749
17	RAIL, DWR., RH
18	END PANEL, RH, ALMOND
19	WASHER, PADDED
20	RETAINER
22	WCI K5029503
23	WCI K5025802
24	COVER-WIRE
25	TERMINAL BLOCK
28	WCI Q500411
29	WCI Q401002
30	WASHER (6)
32	STRAP-GROUND
34	WCI Q410505
35	GUSSET REAR, LH
36	COVER, WIRE
37	BACK
38	ROD
39	GUSSET, RH
40	INSULATION, WRAP
42	VENT TUBE
43	INSULATION, BACK
45	WCI K1325472
46	BUMPER
47	BRACKET THERM. BULB
48	PANEL, BTM
49	RAIL, DWR, LH
50	GUIDE
51	SPACER, RAIL
52	LEG
53	END PANEL, LH, ALMOND
54	CHANNEL, OV. SUPT.
56	SCREW
57	CUP, OVEN LT
58	316116400 Frigidaire Oven Light Socket
59	08002868 Frigidaire 0 Screw Assembly
60	WCI K1325537
61	WCI K5294301
62	SCREW
