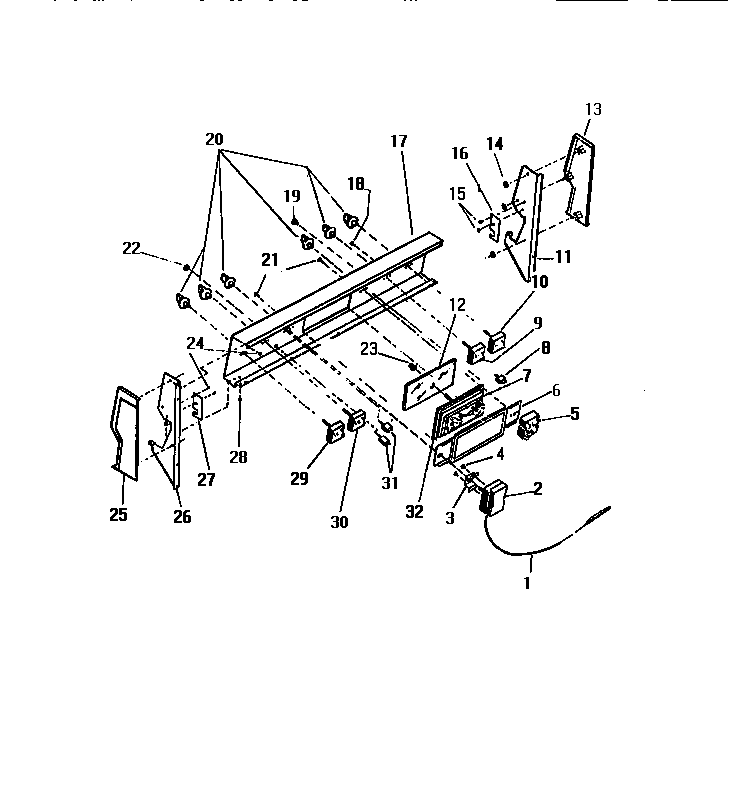

KF420GDV2 02 – BACKGUARD

Products

Position	Product
1	WCI K1305350
2	THERMOSTAT
3	BRACKET
4	SCREW
5	SWITCH SELEC.
6	WCI K5296301
7	WCI K5335801
8	LIGHT,SIGNAL (SURFACE UNIT 125V)
11	WCI K5025202
12	GLASS
13	WCI K5030402
14	NUT (3)
15	08002868 Frigidaire 0 Screw Assembly
17	WCI K5030302
19	LENS
20	KNOB (6)
21	SCREW
22	WCI K1322878
23	KNOB, TIMER
25	WCI K5030401
26	WCI K5025201
27	WCI K5025001
28	WCI K1164566
30	5303935086 Frigidaire Oven Top Burner Switch Kit
31	LIGHT SIGNAL (OVEN 250V)
32	BEZEL
