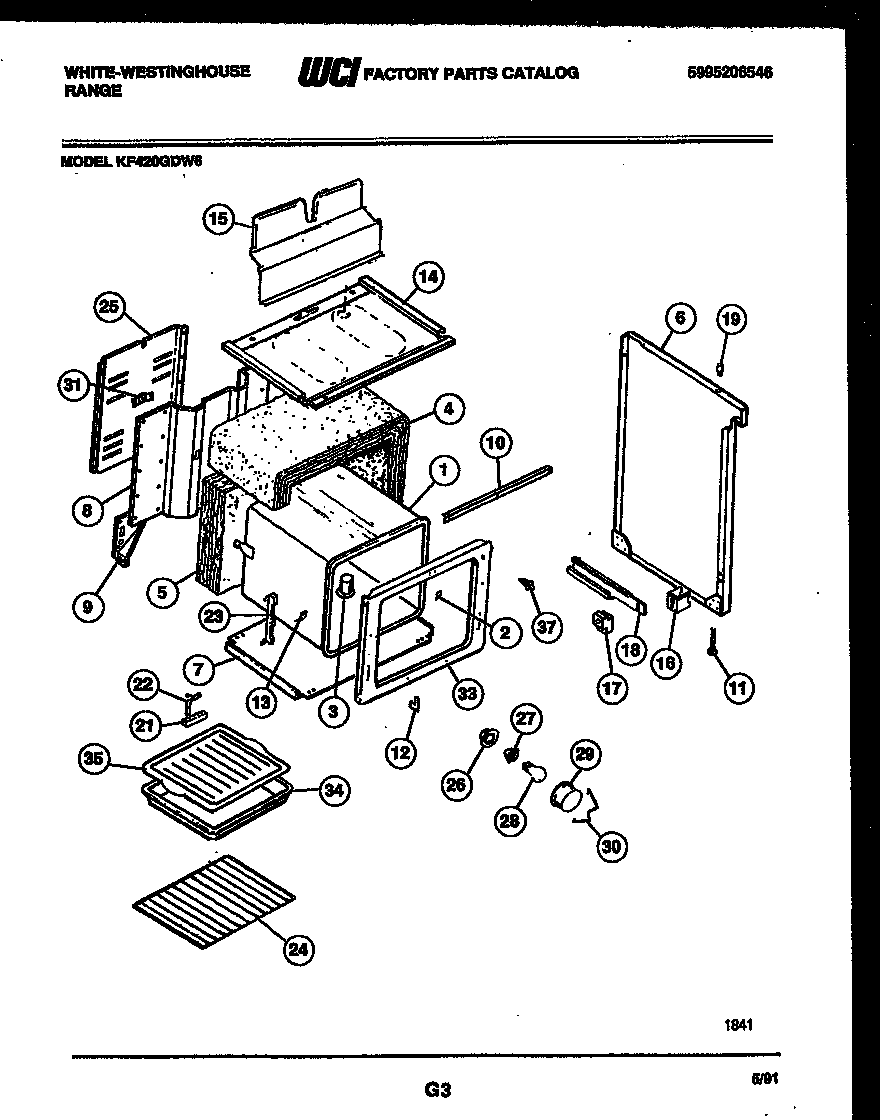

KF420GDW6 07 – BODY PARTS

Products

Position	Product
*46527	WCI 191S018F08
1	BODY-OVEN
2	WCI 3202082
3	WCI 08012541
4	INSULATION - OVEN WRAP
5	INSULATION
6	SIDE PANEL, RH WHITE
6A	SIDE PANEL, LH WHITE
7	WCI 3206275
8	PANEL-BACK
9A	WCI 3017482
9	WCI 3017481
10	WCI 5303207391
11	SCREW-LEVELING (4)
12	WCI 3019063
13	WCI 3201632
14	WCI 08012542
15	WCI 3206095
16	SPACER, DRAWER RAIL (2)
17	GUIDE-DRAWER FRNT (2)
18A	RAIL, DRAWER LH
18	WCI 5308015746
19	BUMPER, COOKTOP (4)
21	5304409888 Frigidaire Oven Terminal Block with Hardware
22	PLATE=GROUND STRAP
23	WCI 3201631
24	316067902 Frigidaire Oven Rack
25	WIRE, COVER
26	WCI 3051511
27	316116400 Frigidaire Oven Light Socket
28	316538904 Frigidaire Oven Lamp Light
29	5304524341 Frigidaire Lens
30	RETAINER-LENS
31	WCI 3016281
33	WCI 5303207446
34	WCI 3205539
35C	PLUG BUTTON (NON-ILLUSTRATED)
35B	WCI 5300009126
35	WCI 3205234
35A	ANTI-TIP KIT, (NON-ILLUSTRATED)
37	WCI 5301314211
