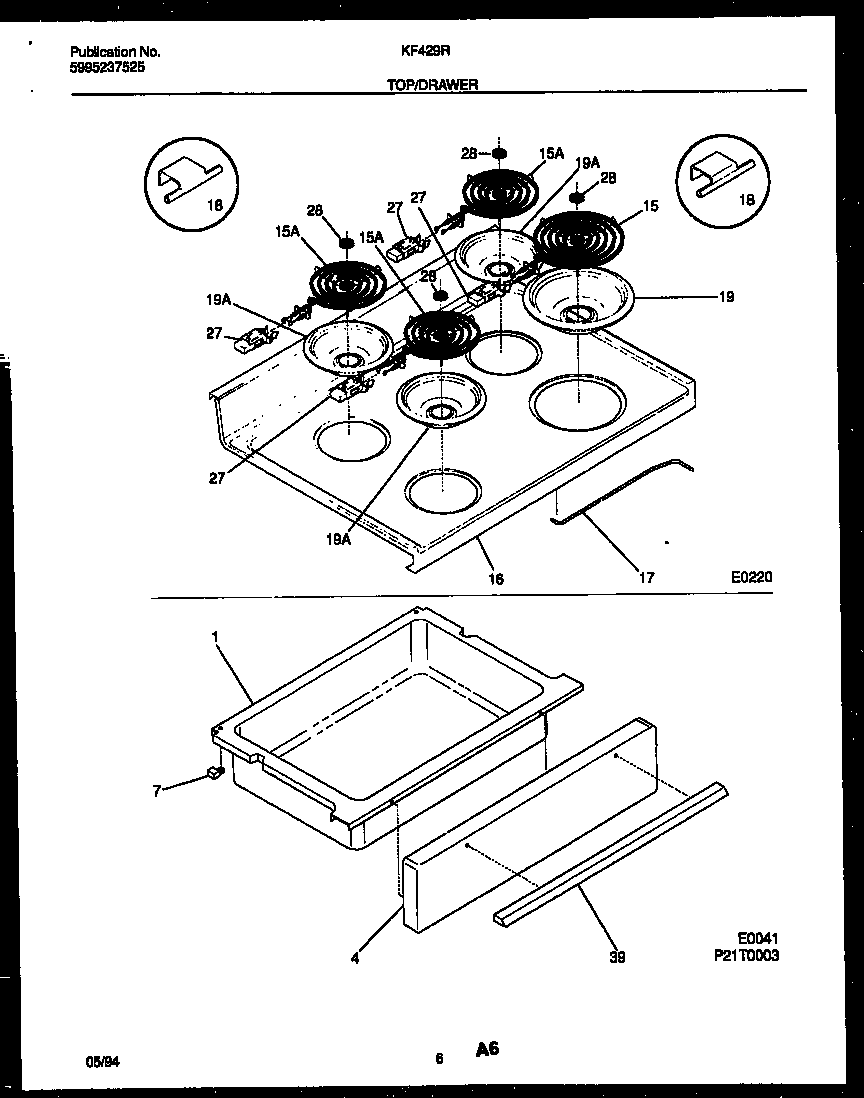

KF429RD1 04 – COOKTOP AND DRAWER PARTS

KF429RD1 04 – COOKTOP AND DRAWER PARTS

Written by

in

KF429RD1 04 – COOKTOP AND DRAWER PARTS

Products

PositionProduct
1ASCREW-SHOULDER
1DRAWER
4WCI 5301325100
7GUIDE – DRAWER REAR (2)
15A318372210 Frigidaire Oven Range 6" 1250W Surface Element
15316442300 Frigidaire Oven 2100W Coil Element 8
16WCI 5303292690
17ROD – TOP SUPPORT LH
17AROD – TOP SUPPORT RH
18PIN, HINGE (2)
19A316048414 Frigidaire Oven Range Chrome 6" Drip Bowl
19316048413 Frigidaire Oven Range Chrome 8" Drip Bow
275303935058 Frigidaire Oven Burner Receptacle Kit
28MEDALLION, STAINLESS STEEL, SURF ELEM
39HANDLE
