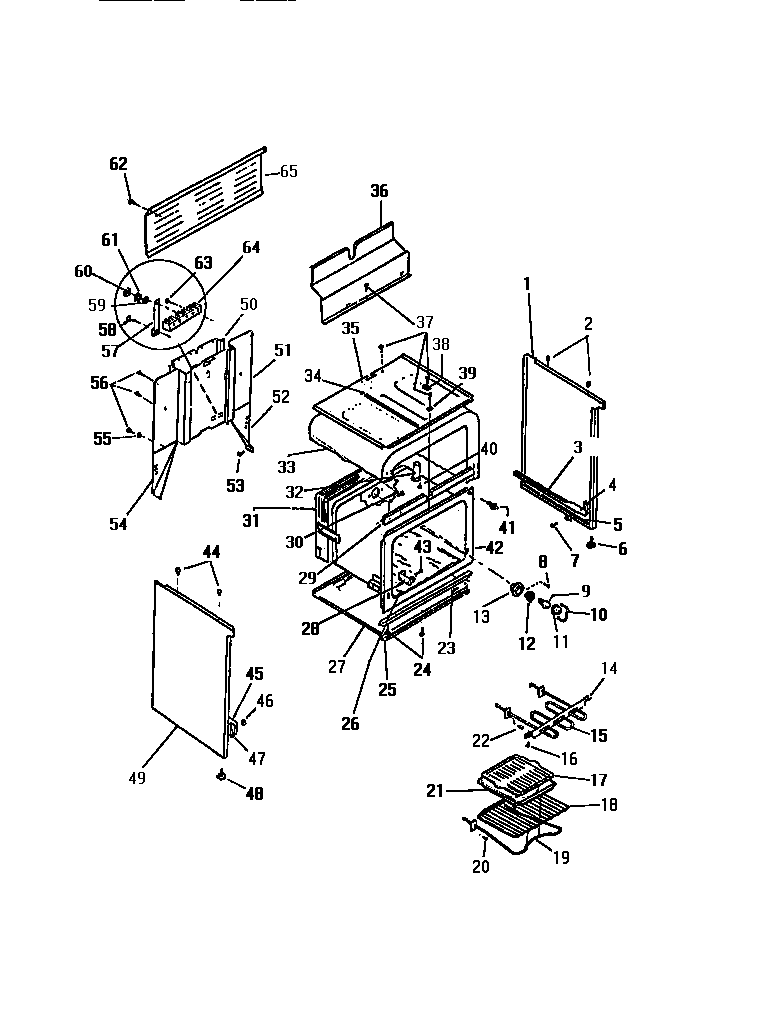

KF440GDD0 05 – BODY, SIDE PANELS

Products

Position	Product
1	END PANEL, RH, ALMOND
3	RAIL, DWR., RH
7	SCREW
9	WCI 063749
10	RETAINING WIRE
11	5304524341 Frigidaire Lens
12	316116400 Frigidaire Oven Light Socket
13	CUP, OVEN LT
14	HANGER
15	5303051516 Frigidaire Broil Element
17	GRILLE, BROILER
18	RACK (2)
19	5303051519 Frigidaire Oven 2600W Bake Element
21	5304442087 Frigidaire Range Wall Oven Broil Pan and Insert
26	CHANNEL, OV. SUPT.
27	WCI K1315107
28	BRACKET THERM. BULB
29	CHANNEL-OVEN SUPT
31	INSULATION, BACK
32	VENT TUBE
33	INSULATION, WRAP
34	ROD
35	WCI K5025802
36	WCI K5032101
38	RETAINER
39	WASHER, PADDED
40	SCREW
41	SWITCH, OVEN LIGHT
42	OVEN LINER ASSEMBLY
43	08002868 Frigidaire 0 Screw Assembly
44	BUMPER
45	RAIL, DWR, LH
46	GUIDE
47	SPACER, RAIL
48	LEG
49	END PANEL, LH, ALMOND
50	WCI K1315110
51	BACK
52	WCI K1325113
54	WCI K1325114
55	WCI 0410505
57	STRAP-GROUND
59	WCI 0402503
60	WCI 0401002
61	WCI 0500411
63	SCREW
64	WCI 0134264
65	COVER-WIRE
